INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1050a: Observation start 1999-12-31T23:58 = MJD 51544
Total Observation GTI = 51969 seconds

ISGRI

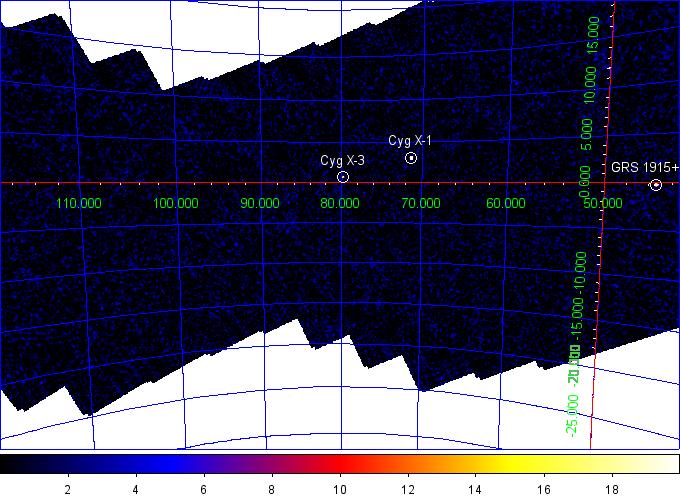

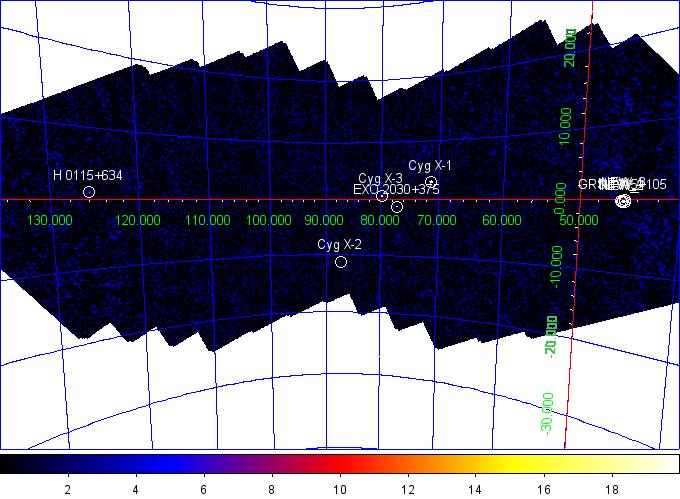

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 207 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cyg X-1               299.590  +35.203 0.2   71.336   +3.067  124.6  0.31 408.1   71.0  0.24 300.7
GRS 1915+105          288.796  +10.944 0.3   45.363   -0.218   74.2  0.40 185.2    0.0  0.00   0.0
Cyg X-3               308.099  +40.958 0.5   79.842   +0.705   28.0  0.34  83.0    6.3  0.26  23.9
EXO 2030+375          308.043  +37.625 1.3   77.132   -1.236    7.1  0.32  22.0    0.0  0.00   0.0
Cyg X-2               326.177  +38.320 2.3   87.331  -11.320    6.5  0.57  11.5    0.0  0.00   0.0
H 0115+634             19.751  +63.777 3.6  125.972   +1.068    3.5  0.50   7.0    0.0  0.00   0.0
SS 433                288.002   +4.984 3.5   39.716   -2.284    5.0  0.70   7.2    0.0  0.00   0.0

JEM-X


JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source, with j_ima_src_locator, in 3-10 keV energy band.
Source Name             RA      dec       l        b     A(cps)  +/-
==================== ======== ======== ======== ======== ====== =====
IGR J19140+0951      288.534  +9.883   44.304   -0.483   0.45   8.42
Cyg X-1              299.587  +35.203  71.335   +3.070   7.72   191.7
Cyg X-3              308.103  +40.956  79.842   +0.702   4.17   145.5
EXO 2030+375         308.061  +37.637  77.151   -1.240   0.76   41.44
Cas A                350.856  +58.820  111.73   -2.126   0.48   21.35
H 0115+634           19.6363  +63.738  125.92   +1.025   0.81   49.00
gam Cas              14.1718  +60.707  123.57   -2.148   0.17   11.20
