INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1052a: Observation start 2011-05-26T04:35 = MJD 55707.191
Total Observation GTI = 23181 seconds

ISGRI

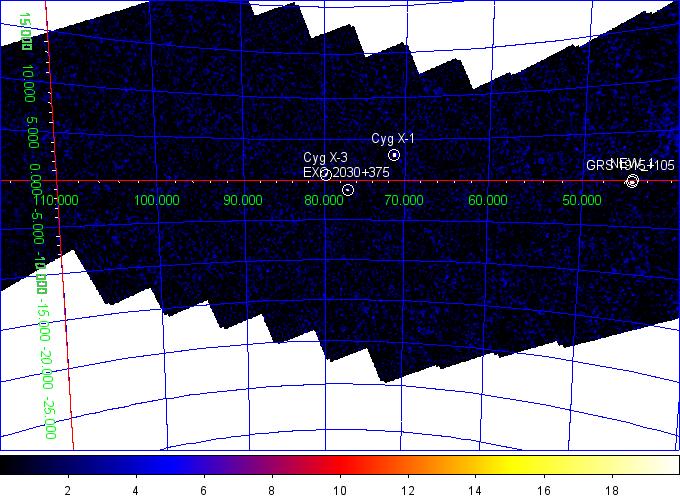

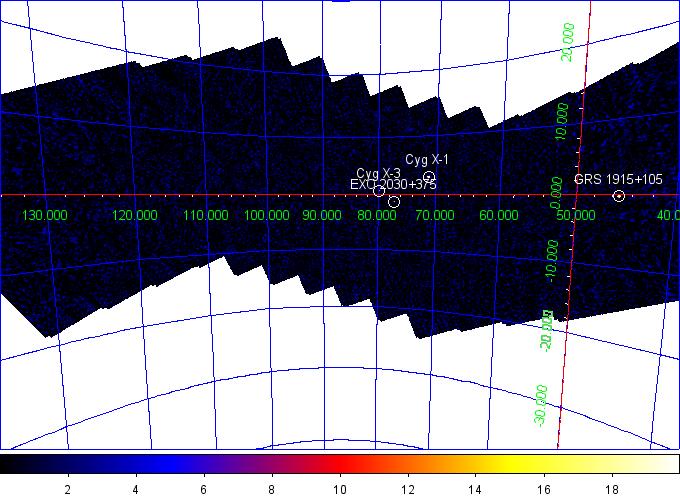

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 207 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cyg X-1               299.583  +35.201 0.3   71.331   +3.071  125.6  0.59 214.7   68.0  0.44 155.8
GRS 1915+105          288.798  +10.948 0.4   45.368   -0.218   69.5  0.52 134.4    0.0  0.00   0.0
Cyg X-3               308.103  +40.955 0.7   79.841   +0.701   21.0  0.40  52.5    4.9  0.31  15.8
EXO 2030+375          308.058  +37.637 0.8   77.149   -1.238   19.9  0.45  44.2    0.0  0.00   0.0
3A 2206+543           331.932  +54.488 3.7  100.560   -1.113    3.5  0.51   6.9    0.0  0.00   0.0
Cyg X-2               326.149  +38.338 3.6   87.326  -11.292    7.4  1.05   7.0    0.0  0.00   0.0
SWIFT J1930.5+3414    292.543  +34.077 4.6   67.481   +7.556    6.2  1.16   5.4    0.0  0.00   0.0

JEM-X


JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source with j_ima_src_locator in 3-10 keV energy band.
.
Source Name             RA      dec       l        b     A(cps)  +/-
==================== ======== ======== ======== ======== ====== =====
GRS 1915+105          288.798  +10.948 45.368   -0.218   10.16  0.05
Cyg X-3               308.103  +40.955 79.841   +0.701   3.50   0.05
EXO 2030+375          308.058  +37.637 77.149   -1.238   1.73   0.03
H 0115+634            19.6363  +63.738 125.92   +1.025   0.49   0.03
