INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1132b: Observation start 2012-01-22T21:55 = MJD 55948.914
Total Observation GTI = 16300 seconds

ISGRI

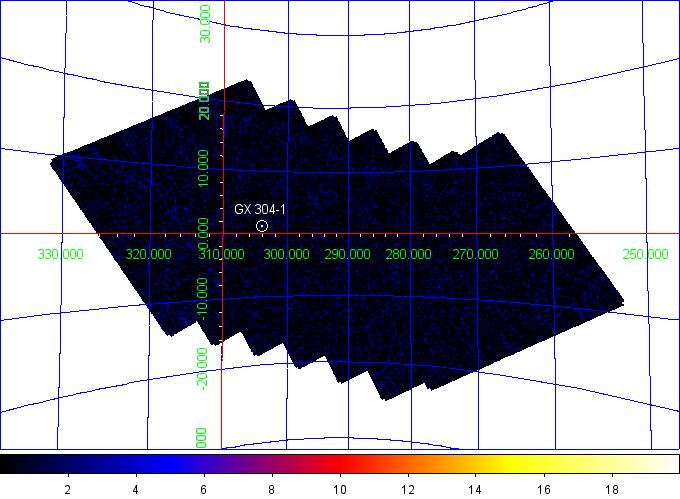

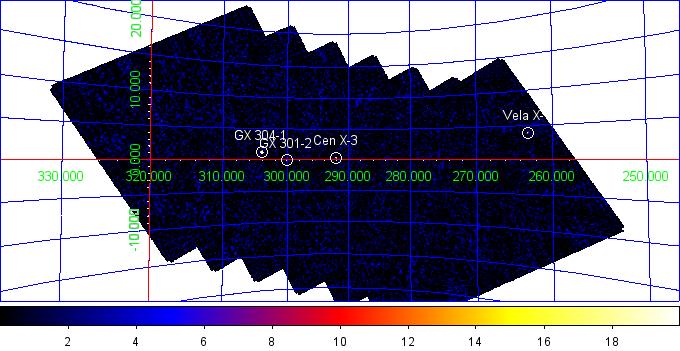

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 176 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 88 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 304-1              195.316  -61.602 0.3  304.100   +1.247  136.7  0.49 279.3   21.1  0.34  61.9
GX 301-2              186.671  -62.767 0.8  300.104   -0.031   20.1  0.48  41.7    2.9  0.33   8.7
Cen X-3               170.333  -60.620 1.2  292.099   +0.342   10.7  0.44  24.5    0.0  0.00   0.0
Vela X-1              135.533  -40.546 1.5  263.054   +3.938   25.9  1.37  18.9    0.0  0.00   0.0
1E 1145.1-6141        176.907  -61.943 2.8  295.504   +0.005    4.7  0.51   9.3    0.0  0.00   0.0
3EG J1329-4602        202.608  -46.006 4.3  309.971  +16.332    6.2  1.05   5.9    0.0  0.00   0.0
Circinus Galaxy       213.413  -65.305 4.1  311.385   -3.791    3.9  0.64   6.1    0.0  0.00   0.0
4U 1323-62            201.542  -62.150 4.6  306.976   +0.449    2.9  0.53   5.4    0.0  0.00   0.0

JEM-X

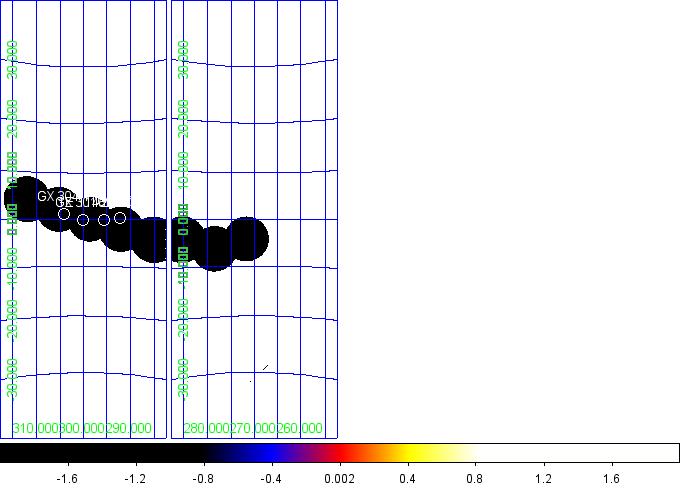

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cen X-3                1.7030104E+02  -6.0624214E+01   1.3753874E+00   4.4987576E+01
GX 301-2               1.8664764E+02  -6.2766636E+01   4.0186578E-01   1.5988505E+01
1E 1145.1-6141         1.7686613E+02  -6.1958862E+01   4.0824857E-01   1.1964280E+01
H 0918-549             1.4009712E+02  -5.5204891E+01   1.4396471E-01   5.9952464E+00
GX 304-1               1.9532472E+02  -6.1606316E+01   9.4795809E+00   1.7672221E+02
