INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1172a: Observation start 2012-05-19T02:34 = MJD 56066.107
Total Observation GTI = 50350 seconds

ISGRI

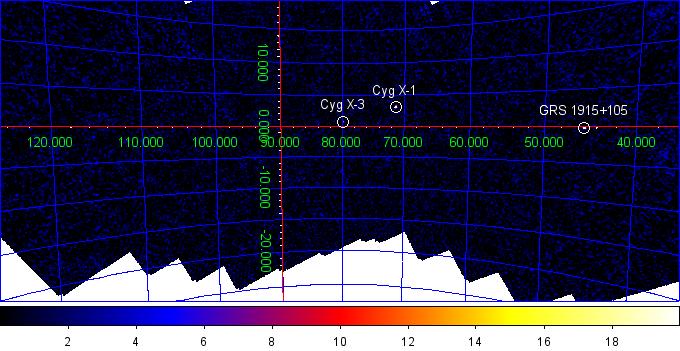

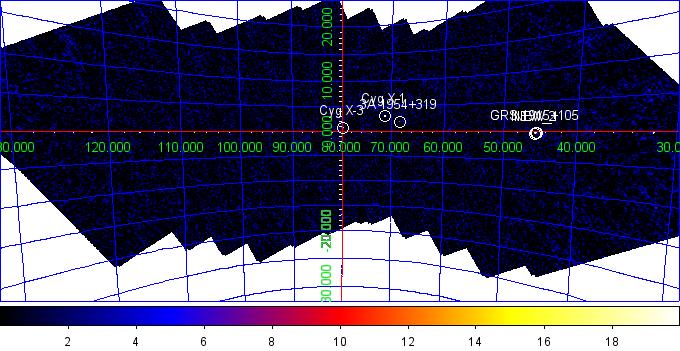

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 176 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 88 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cyg X-1               299.587  +35.202 0.3   71.334   +3.070  118.2  0.39 302.8   58.2  0.29 200.3
GRS 1915+105          288.798  +10.946 0.3   45.365   -0.219   66.0  0.42 158.5    0.0  0.00   0.0
Cyg X-3               308.108  +40.957 0.6   79.845   +0.699   23.2  0.36  64.2    4.6  0.29  16.2
3A 1954+319           298.925  +32.092 2.0   68.387   +1.926    5.2  0.37  13.8    0.0  0.00   0.0
Cyg X-2               326.183  +38.309 3.7   87.327  -11.332    4.1  0.59   6.9    0.0  0.00   0.0
Cas A                 350.896  +58.755 3.8  111.737   -2.194    2.2  0.33   6.7    0.0  0.00   0.0
IGR J21247+5058       320.992  +50.973 3.8   93.241   +0.469    2.2  0.34   6.6    0.0  0.00   0.0
4U 1909+07            287.710   +7.619 4.1   41.921   -0.810    2.8  0.45   6.1    0.0  0.00   0.0

JEM-X

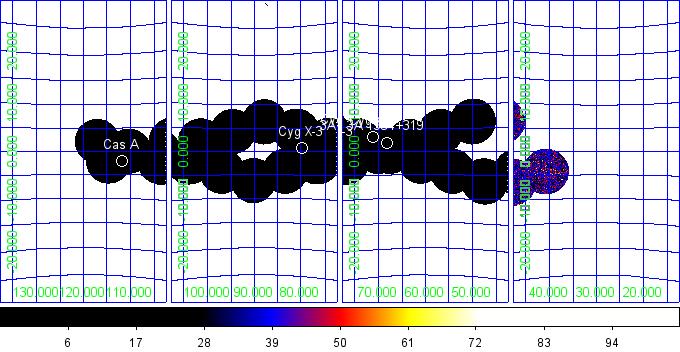

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cas A                  3.5084384E+02   5.8815506E+01   4.7259724E-01   3.1456758E+01
Cyg X-1                2.9958878E+02   3.5202065E+01   1.1728175E+01   2.2050938E+02
Cyg X-3                3.0810419E+02   4.0955956E+01   3.5455151E+00   7.3578941E+01
3A 1954+319            2.9892972E+02   3.2099701E+01   7.7715194E-01   2.9219862E+01
EXO 2030+375           3.0805026E+02   3.7631561E+01   1.7861994E-01   8.4524717E+00
SS 433                 2.8795950E+02   4.9810567E+00   1.5122420E-01   8.7593737E+00
4U 1909+07             2.8769284E+02   7.5900087E+00   2.4113472E-01   8.2151480E+00
