INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1227: Observation start 2012-10-30T14:51 = MJD 56230.619
Total Observation GTI = 84698 seconds

ISGRI

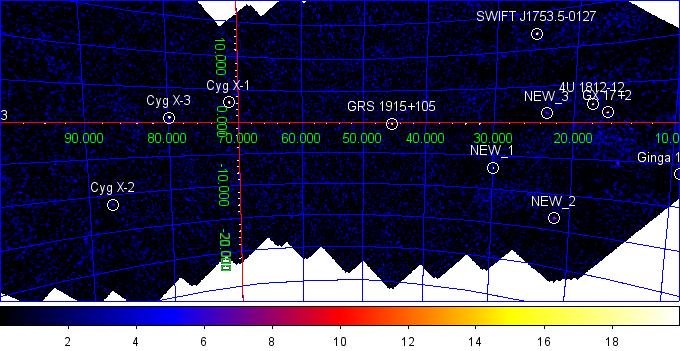

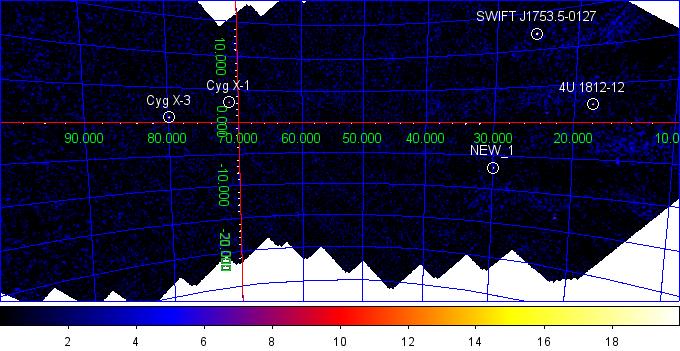

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 176 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 88 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cyg X-3               308.109  +40.956 0.4   79.844   +0.698   41.6  0.41 101.5    9.4  0.30  31.1
Cyg X-1               299.590  +35.204 0.7   71.336   +3.068   22.9  0.47  48.5    5.8  0.33  17.7
GRS 1915+105          288.798  +10.937 0.8   45.358   -0.223   11.7  0.30  38.6    0.0  0.00   0.0
SWIFT J1753.5-0127    268.362   -1.457 0.9   24.890  +12.189   13.5  0.40  33.5    8.0  0.29  27.7
GX 17+2               274.003  -14.037 1.1   16.431   +1.280    7.1  0.25  28.5    0.0  0.00   0.0
4U 1812-12            273.785  -12.097 1.2   18.036   +2.389    5.8  0.23  25.6    3.2  0.17  19.1
3A 2206+543           331.979  +54.518 1.3  100.600   -1.105    6.4  0.29  21.8    0.0  0.00   0.0
Ginga 1826-24         277.366  -23.788 1.9    9.280   -6.083   17.4  1.23  14.1    7.7  0.84   9.2
Cyg X-2               326.179  +38.338 2.1   87.344  -11.307    6.6  0.50  13.2    0.0  0.00   0.0
3A 1954+319           298.946  +32.121 2.9   68.422   +1.925    3.7  0.40   9.1    0.0  0.00   0.0
GX 5-1                270.326  -25.123 3.5    5.058   -1.073   19.8  2.69   7.4    0.0  0.00   0.0
H 1907+097            287.416   +9.885 3.6   43.796   +0.494    2.2  0.31   7.0    0.0  0.00   0.0
3A 1850-087           283.283   -8.697 3.9   25.369   -4.327    1.4  0.21   6.5    0.0  0.00   0.0
XTE J1855-026         283.847   -2.641 3.9   31.030   -2.082    1.4  0.21   6.5    0.0  0.00   0.0
GX 9+1                270.338  -20.571 3.5    9.019   +1.171    4.0  0.55   7.4    0.0  0.00   0.0
4U 1916-053           289.798   -5.290 3.9   31.355   -8.575    1.9  0.30   6.5    0.0  0.00   0.0
4U 1909+07            287.743   +7.598 4.2   41.917   -0.849    2.0  0.33   6.0    0.0  0.00   0.0
MAXI J1910-057        287.610   -5.803 1.1   29.906   -6.860    7.5  0.26  29.0    4.6  0.19  24.3

JEM-X


JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cas A                  3.5085913E+02   5.8818760E+01   4.9049681E-01   3.0615126E+01
3A 2206+543            3.3199268E+02   5.4521515E+01   4.9026075E-01   2.4242895E+01
Ser X-1                2.7998920E+02   5.0390148E+00   6.0070767E+00   1.6308551E+02
H 1822-000             2.7633759E+02  -1.0856971E-02   5.4692340E-01   1.1284997E+01
4U 1812-12             2.7376999E+02  -1.2090510E+01   3.1512797E-01   7.2569332E+00
