INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1472a: Observation start 2014-11-02T11:42 = MJD 56963.488
Total Observation GTI = 36969 seconds

ISGRI

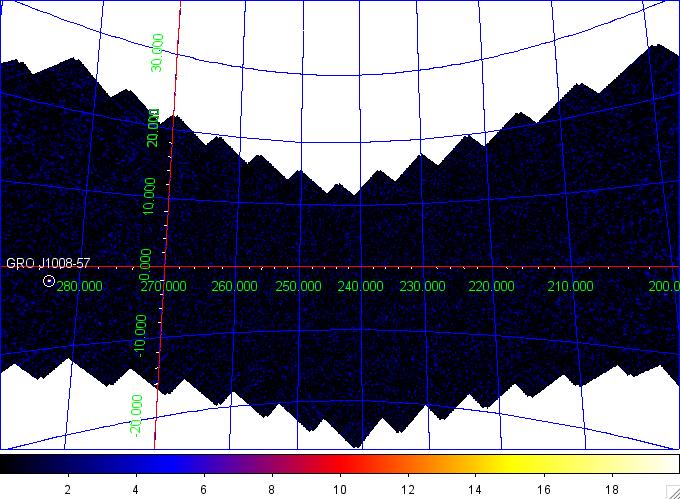

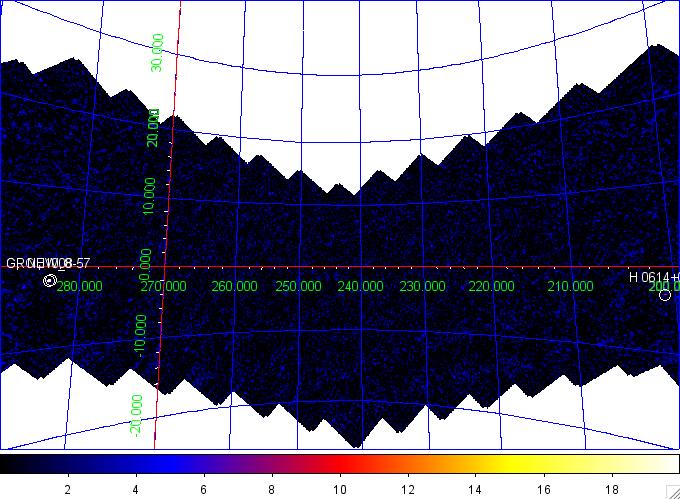

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 176 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 88 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Crab                   83.644  +22.020 0.4  184.556   -5.786  188.2  0.00 161.1   93.4  0.00 130.0
GRO J1008-57          152.452  -58.296 0.5  282.996   -1.827  53.3   0.66  80.8   14.8  0.36  40.6
Cen X-3               170.286  -60.645 1.3  292.093   +0.336  12.2   0.55  22.4    0.0  0.00   0.0
GX 301-2              186.711  -62.764 1.5  300.099   -0.027  14.7   0.80  18.5    2.2  0.00   5.5
H 0614+091             94.282   +9.149 2.0  200.907   -3.358   8.9   0.67  13.3    0.0  0.00   0.0

JEM-X

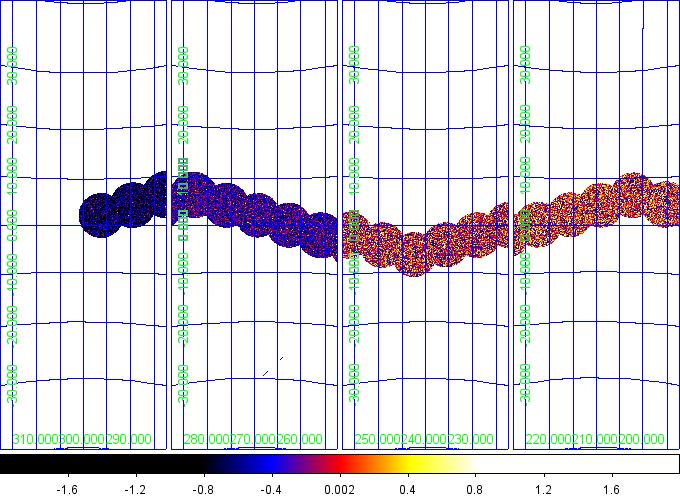

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cen X-3                1.7031447E+02  -6.0635319E+01   6.6258126E-01   9.7276716E+00
1E 1145.1-6141         1.7689888E+02  -6.1969749E+01   1.7527846E-01   6.9407215E+00
