INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1483b: Observation start 2014-12-07T08:50 = MJD 56998.369
Total Observation GTI = 49821 seconds

ISGRI

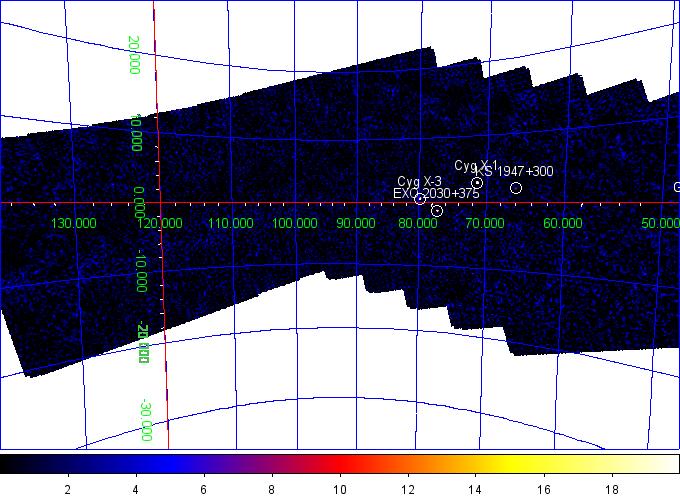

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 176 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 88 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cyg X-1               299.588  +35.202 0.3   71.334   +3.069   55.0  0.33 165.4   21.5  0.21 101.6
Cyg X-3               308.110  +40.956 0.4   79.845   +0.698   35.4  0.33 107.8    8.2  0.21  39.3
GRS 1915+105          288.806  +10.942 0.6   45.366   -0.228  103.6  1.72  60.3    0.0  0.00   0.0
EXO 2030+375          308.065  +37.641 0.8   77.155   -1.241   15.5  0.39  39.7    0.0  0.00   0.0
KS 1947+300           297.376  +30.223 2.5   66.102   +2.107    3.5  0.33  10.6    0.0  0.00   0.0
SAX J2103.5+4545      315.937  +45.759 3.1   87.154   -0.700    3.1  0.37   8.3    0.0  0.00   0.0
3A 2206+543           331.995  +54.481 3.2  100.587   -1.140    2.5  0.30   8.2    0.0  0.00   0.0
3A 0114+650            19.491  +65.220 0.0  125.709   +2.491    2.7  0.00   6.8    0.0  0.00   0.0

JEM-X

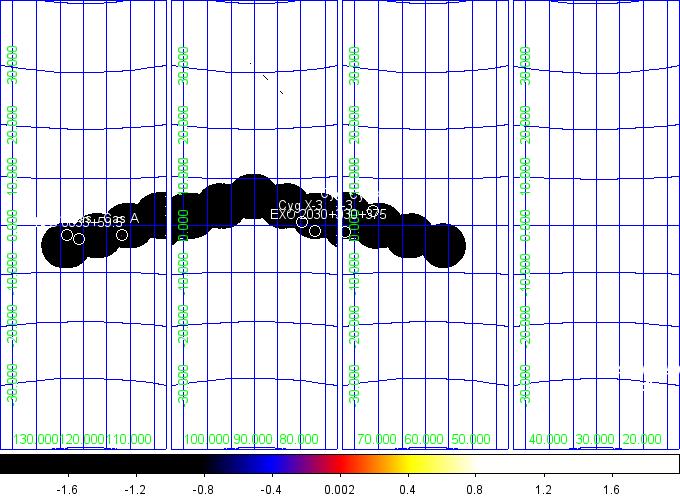

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cas A                  3.5086746E+02   5.8822697E+01   4.2282361E-01   2.6554251E+01
1ES 0033+59.5          8.9737005E+00   5.9835278E+01   1.7465916E-01   1.1719693E+01
gam Cas                1.4156154E+01   6.0719742E+01   1.9554105E-01   1.1428554E+01
Cyg X-1                2.9958505E+02   3.5201569E+01   1.1188220E+01   1.8896532E+02
Cyg X-3                3.0810718E+02   4.0968609E+01   4.3058023E+00   1.1489487E+02
EXO 2030+375           3.0806735E+02   3.7646206E+01   1.4856688E+00   4.2701611E+01
