INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1603: Observation start 2015-10-26T06:57 = MJD 57321.29
Total Observation GTI = 62481 seconds

ISGRI

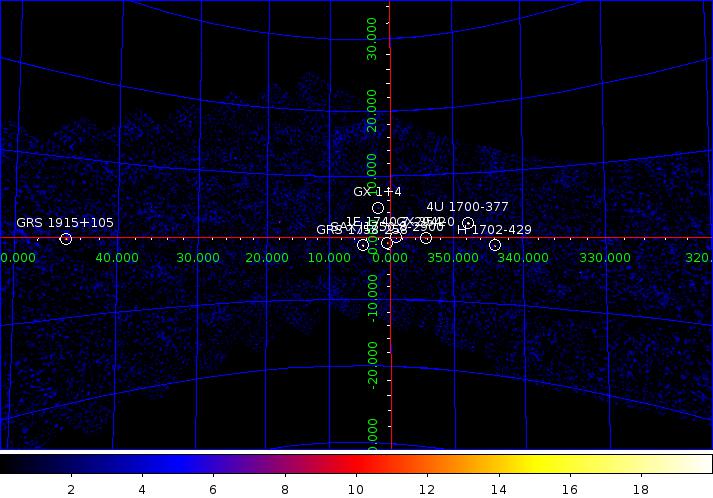

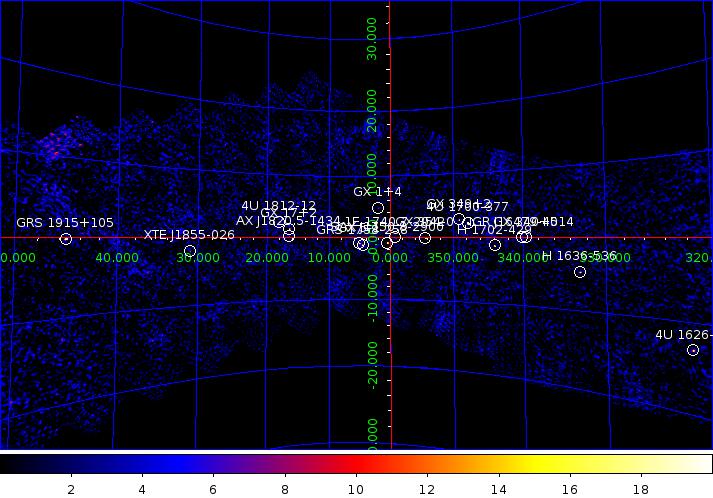

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA9, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 176 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 88 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.991  -37.839 0.4  347.760   +2.174   54.4  0.52 105.6   21.9  0.31  70.9
GRS 1915+105          288.811  +10.951 0.9   45.376   -0.228   13.7  0.36  38.4    0.0  0.00   0.0
GX 354-0              262.999  -33.827 1.0  354.314   -0.153   15.8  0.48  33.2    5.8  0.30  19.7
GRS 1758-258          270.300  -25.728 1.1    4.520   -1.353   13.5  0.51  26.6    9.7  0.31  31.3
GX 17+2               274.005  -14.039 1.1   16.429   +1.277   10.8  0.40  27.2    0.0  0.00   0.0
GX 5-1                270.286  -25.075 1.3    5.082   -1.018   11.4  0.51  22.5    0.0  0.00   0.0
H 1702-429            256.574  -43.020 1.2  343.904   -1.315    9.9  0.40  24.9    5.5  0.27  20.3
GX 349+2              256.451  -36.409 1.2  349.122   +2.747   10.1  0.42  24.0    0.0  0.00   0.0
H 1636-536            250.233  -53.748 1.3  332.919   -4.816    7.4  0.34  21.7    2.2  0.23   9.3
SAX J1750.8-2900      267.596  -29.034 1.4    0.455   -0.942    9.9  0.47  21.1    5.0  0.29  17.0
4U 1626-67            248.090  -67.463 1.4  321.792  -13.099   11.3  0.57  20.0    0.0  0.00   0.0
1E 1740.7-2942        266.006  -29.717 1.9  359.153   -0.111    6.3  0.42  14.9    5.9  0.26  23.2
4U 1812-12            273.763  -12.107 2.0   18.018   +2.403    4.8  0.36  13.3    2.4  0.24   9.9
GX 340+0              251.451  -45.605 2.0  339.594   -0.077    5.6  0.41  13.7    0.0  0.00   0.0
XTE J1855-026         283.842   -2.581 2.3   31.082   -2.051    4.1  0.35  11.7    0.9  0.00   4.1
AX J1820.5-1434       275.114  -14.549 2.4   16.489   +0.089    4.2  0.38  11.1    1.0  0.25   3.8
IGR J16479-4514       251.962  -45.181 2.1  340.149   -0.076    5.0  0.38  13.0    1.8  0.25   7.4
GX 1+4                262.989  -24.761 2.5    1.914   +4.802    4.3  0.41  10.6    0.0  0.00   0.0
SS 433                288.029   +5.011 3.3   39.752   -2.296    2.5  0.32   7.7    0.0  0.00   0.0
3EG J1649-1611        252.518  -16.114 0.0    3.474  +17.780    9.5  0.00   8.5    0.0  0.00   0.0
H 1907+097            287.400   +9.877 2.9   43.782   +0.505    3.2  0.36   8.9    0.0  0.00   0.0
SWIFT J1753.5-0127    268.381   -1.446 3.0   24.910  +12.177    5.4  0.62   8.6    3.1  0.41   7.7
OAO 1657-415          255.143  -41.618 3.5  344.371   +0.378    2.7  0.00   7.2    1.1  0.26   4.3
SAX J1806.5-2215      271.633  -22.272 2.9    8.129   -0.715    4.0  0.44   9.1    0.0  0.00   0.0
XTE J1908+094         287.194   +9.384 0.0   43.250   +0.457    2.5  0.00   7.0    0.0  0.00   0.0

JEM-X


JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
