INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1699: Observation start 2016-07-07T12:26 = MJD 57576.519
Total Observation GTI = 115668 seconds

ISGRI

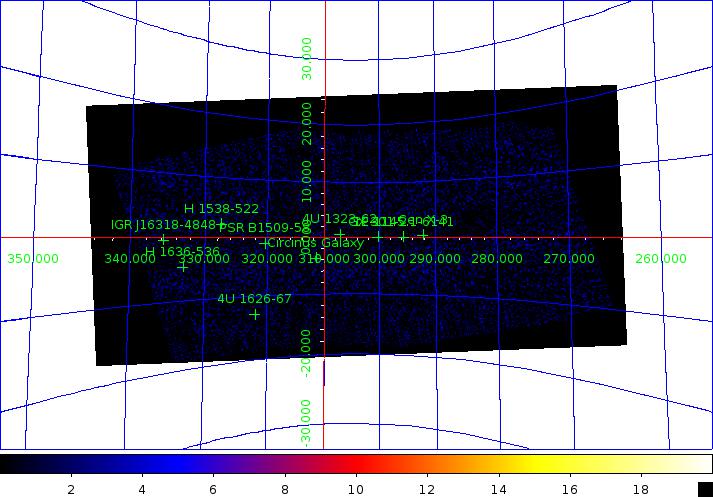

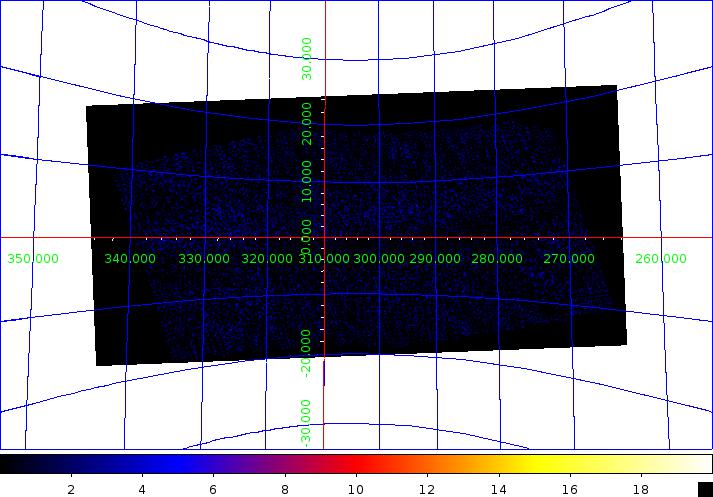

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.651  -62.771 0.5  300.096   -0.036   12.3  0.14  86.9    0.8  0.12   7.3
Cen X-3               170.304  -60.615 1.0  292.083   +0.342    5.0  0.15  32.4    0.0  0.00   0.0
H 1538-522            235.526  -52.364 1.9  327.398   +2.207    3.3  0.23  14.7    0.0  0.00   0.0
4U 1626-67            248.105  -67.476 2.0  321.785  -13.112    6.2  0.45  13.6    0.0  0.00   0.0
IGR J16318-4848       247.944  -48.830 2.0  335.603   -0.454   11.7  0.84  14.0    3.9  0.67   5.9
Circinus Galaxy       213.303  -65.343 1.9  311.329   -3.813    2.2  0.15  14.4    1.0  0.13   8.0
4U 1323-62            201.625  -62.147 2.0  307.015   +0.446    2.0  0.15  13.7    1.0  0.12   8.2
H 1636-536            250.238  -53.732 2.5  332.932   -4.809    6.4  0.61  10.4    2.2  0.46   4.8
1E 1145.1-6141        176.880  -61.952 2.4  295.495   -0.007    1.6  0.14  10.9    0.8  0.11   6.9
PSR B1509-58          228.530  -59.126 2.6  320.347   -1.166    1.7  0.17  10.1    1.0  0.14   7.1
3A 1246-588           192.482  -59.174 3.9  302.738   +3.697    1.0  0.16   6.5    0.6  0.11   4.9
4U 1344-60            206.756  -60.642 4.7  309.696   +1.497    0.8  0.15   5.3    0.0  0.00   0.0
IGR J15539-6142       238.201  -61.728 4.9  322.736   -6.044    1.0  0.00   5.0    0.0  0.00   0.0
4U 1543-624           236.848  -62.530 5.7  321.734   -6.269    0.9  0.21   4.3    0.0  0.00   0.0
IGR J11098-6457       167.426  -64.963 5.0  292.432   -4.186    0.7  0.00   4.9    0.0  0.00   0.0
EXMS B0918-549E       140.063  -55.148 4.4  275.791   -3.823    2.3  0.41   5.7    0.0  0.00   0.0

JEM-X

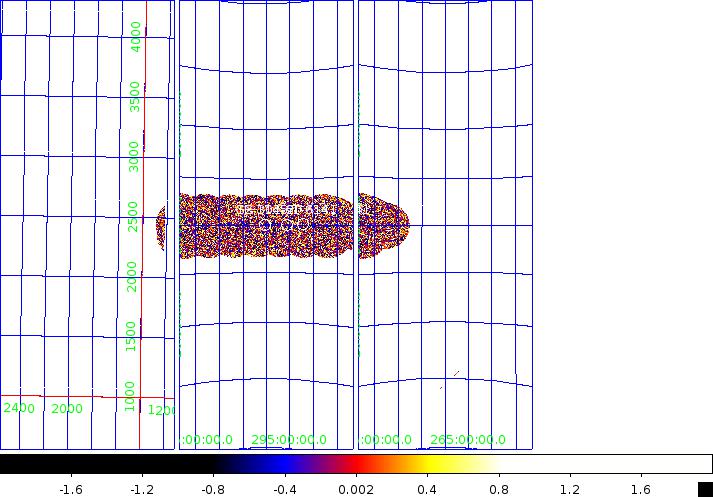

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
