INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1700: Observation start 2016-07-10T21:55 = MJD 57579.914
Total Observation GTI = 67679 seconds

ISGRI

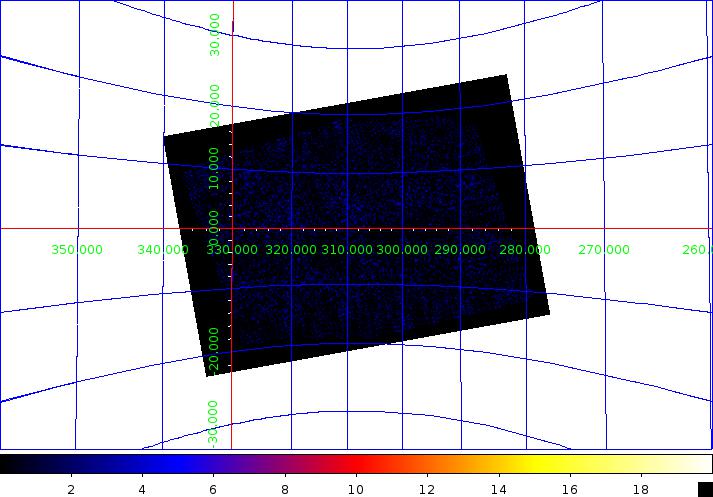

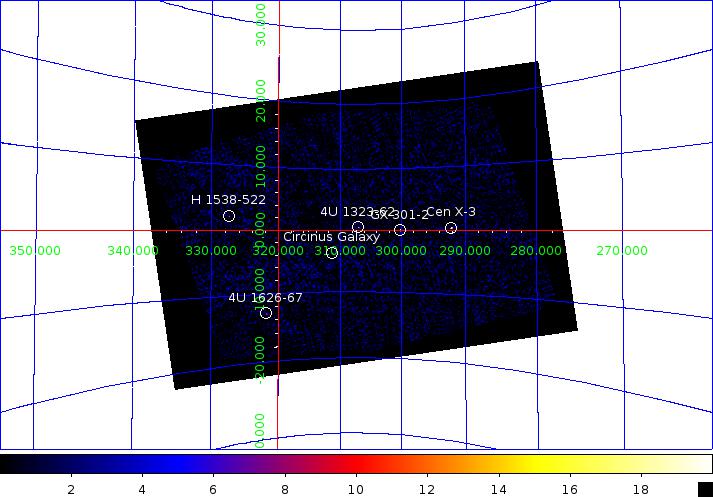

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.653  -62.768 0.5  300.096   -0.033   13.4  0.15  87.5    1.0  0.12   8.3
Cen X-3               170.324  -60.631 0.8  292.098   +0.331    9.9  0.24  40.5    0.0  0.00   0.0
Circinus Galaxy       213.270  -65.322 1.8  311.323   -3.789    2.4  0.16  15.4    0.7  0.13   5.5
4U 1323-62            201.595  -62.149 1.9  307.001   +0.446    2.1  0.14  14.3    1.1  0.12   9.0
4U 1626-67            248.015  -67.436 2.3  321.793  -13.060    6.2  0.54  11.6    0.0  0.00   0.0
H 1538-522            235.603  -52.385 2.2  327.423   +2.162    4.7  0.38  12.3    0.0  0.00   0.0
PSR B1509-58          228.546  -59.163 3.0  320.335   -1.202    1.8  0.20   8.7    0.8  0.17   5.1
1E 1145.1-6141        177.014  -61.897 3.7  295.542   +0.062    1.2  0.18   6.9    0.0  0.00   0.0
IGR J15335-5420       233.415  -54.276 0.0  325.250   +1.411    1.4  0.00   4.7    0.0  0.00   0.0
IGR J12415-5750       190.370  -57.830 5.4  301.602   +5.016    0.8  0.00   4.5    0.0  0.00   0.0
IGR J12482-5828       191.958  -58.477 5.3  302.459   +4.392    0.7  0.16   4.7    0.0  0.00   0.0
IGR J12349-6434       188.853  -64.475 5.0  301.206   -1.657    0.7  0.15   4.9    0.0  0.00   0.0
IGR J13290-6323       202.368  -63.444 5.2  307.168   -0.886    0.6  0.13   4.8    0.0  0.00   0.0

JEM-X

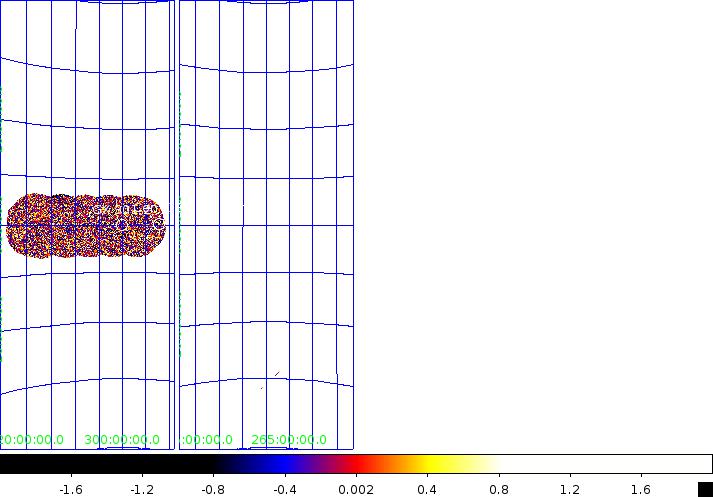

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 301-2               1.8665518E+02  -6.2768818E+01   4.3179053E-03   1.1666553E+02
Cen X-3                1.7031976E+02  -6.0612614E+01   9.4540985E-03   5.4900085E+01
4U 1323-62             2.0165376E+02  -6.2130978E+01   6.4344087E-04   1.8013212E+01
1E 1145.1-6141         1.7688803E+02  -6.1962250E+01   3.9421994E-04   8.2901297E+00
GX 304-1               1.9533766E+02  -6.1595665E+01   2.9940545E-04   7.7964458E+00
4U 1344-60             2.0690709E+02  -6.0632370E+01   3.0519845E-04   7.7628140E+00
PSR B1509-58           2.2848956E+02  -5.9144936E+01   3.0166557E-04   5.9666443E+00
