INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1702: Observation start 2016-07-16T20:49 = MJD 57585.868
Total Observation GTI = 56024 seconds

ISGRI

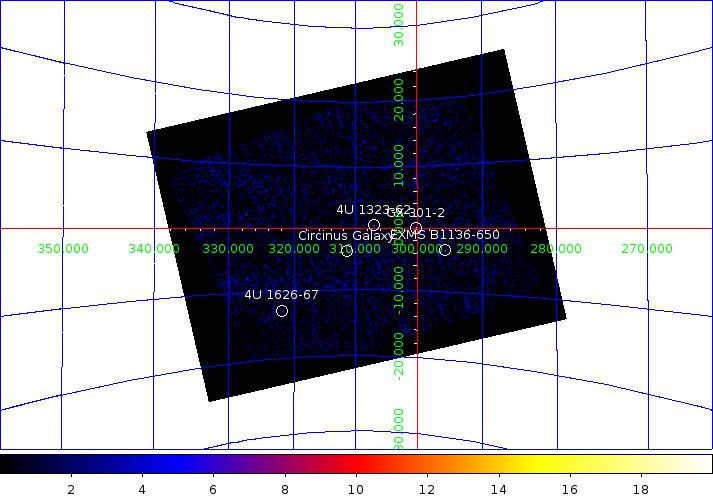

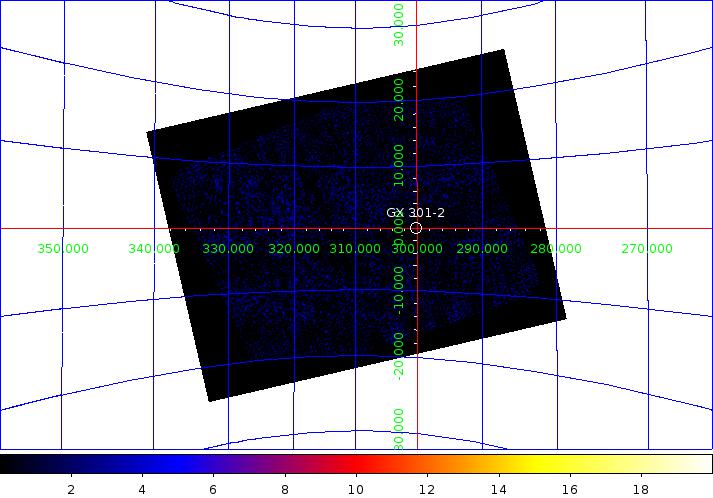

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.647  -62.772 0.4  300.094   -0.037   20.7  0.19 106.6    1.6  0.15  10.7
Circinus Galaxy       213.277  -65.337 1.8  311.321   -3.804    2.4  0.16  15.4    0.8  0.13   6.2
EXMS B1136-650        174.865  -65.402 2.2  295.529   -3.570    3.3  0.26  12.4    0.0  0.00   0.0
4U 1323-62            201.555  -62.185 2.4  306.977   +0.413    1.6  0.15  10.9    0.7  0.12   6.0
4U 1626-67            248.026  -67.439 2.3  321.794  -13.064    6.6  0.57  11.5    0.0  0.00   0.0
Cen X-3               170.319  -60.614 2.8  292.090   +0.346    3.8  0.42   9.2    0.0  0.00   0.0
H 1538-522            235.646  -52.386 3.0  327.444   +2.146    3.3  0.37   8.8    0.0  0.00   0.0
4U 1344-60            206.817  -60.612 3.6  309.732   +1.520    1.1  0.15   7.1    0.0  0.00   0.0
PSR B1509-58          228.520  -59.154 3.8  320.328   -1.188    1.4  0.20   6.8    0.8  0.16   5.1
IGR J12349-6434       188.768  -64.647 4.4  301.180   -1.831    1.0  0.17   5.8    0.0  0.00   0.0

JEM-X

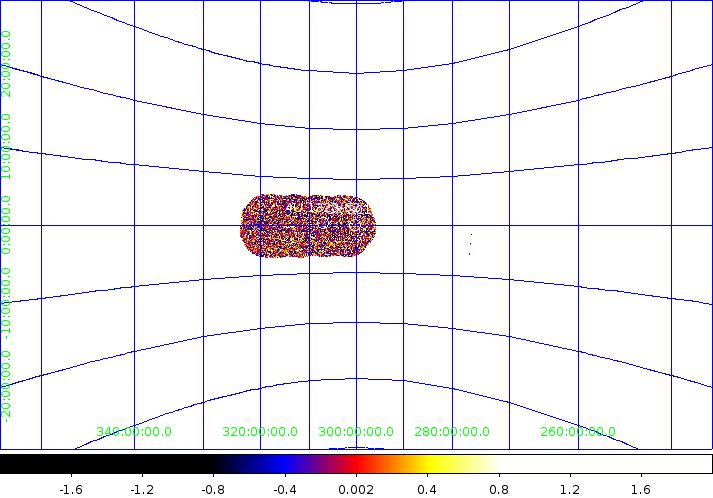

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 301-2               1.8665245E+02  -6.2764347E+01   3.4628559E-03   7.9673042E+01
4U 1323-62             2.0165862E+02  -6.2137787E+01   5.7437696E-04   1.8053988E+01
4U 1344-60             2.0689229E+02  -6.0608425E+01   2.6221652E-04   6.7958908E+00
IGR J14488-5942        2.2216631E+02  -5.9706779E+01   2.1347839E-04   6.3466325E+00
IGR J12349-6434        1.8870889E+02  -6.4567810E+01   2.0772578E-04   4.9479070E+00
