INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1704: Observation start 2016-07-20T17:03 = MJD 57589.711
Total Observation GTI = 162101 seconds

ISGRI

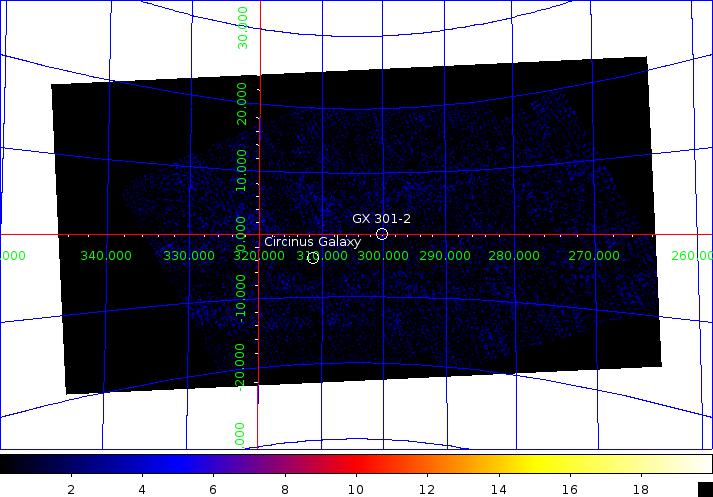

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.656  -62.771 0.3  300.098   -0.036   28.3  0.10 282.6    1.9  0.08  23.8
1E 1145.1-6141        176.911  -61.939 1.4  295.505   +0.009    2.2  0.11  20.3    0.7  0.09   8.1
Circinus Galaxy       213.292  -65.352 1.5  311.322   -3.820    2.1  0.11  19.4    0.9  0.09  10.1
4U 1323-62            201.634  -62.138 1.6  307.020   +0.455    1.9  0.10  18.1    0.6  0.08   7.5
4U 1626-67            248.101  -67.460 2.0  321.797  -13.100    6.1  0.44  13.8    0.0  0.00   0.0
H 1538-522            235.554  -52.365 2.3  327.411   +2.197    3.1  0.27  11.8    0.0  0.00   0.0
4U 1344-60            206.865  -60.591 2.6  309.760   +1.536    1.1  0.10  10.4    0.6  0.08   7.4
PSR B1509-58          228.542  -59.199 3.0  320.314   -1.232    1.3  0.15   8.6    0.8  0.11   7.0
Cen X-3               170.306  -60.617 3.3  292.085   +0.341    1.1  0.13   7.9    0.0  0.00   0.0
IGR J14488-5942       222.146  -59.775 4.0  317.188   -0.186    0.8  0.12   6.3    0.0  0.00   0.0
3A 1246-588           192.402  -59.072 3.4  302.696   +3.799    0.8  0.11   7.5    0.0  0.00   0.0
IGR J12349-6434       188.679  -64.593 3.8  301.139   -1.779    0.7  0.10   6.6    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV


    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 301-2               1.8665758E+02  -6.2767605E+01   5.7351114E-03  1.7313246E+02
1E 1145.1-6141         1.7687856E+02  -6.1955059E+01   1.1725259E-03  3.4873135E+01
4U 1323-62             2.0165695E+02  -6.2134109E+01   6.5717474E-04  2.7175322E+01
Cir X-1                2.3017419E+02  -5.7179008E+01   7.0453121E-04  9.8975840E+00
IGR J14488-5942        2.2216631E+02  -5.9706779E+01   2.5414483E-04  8.8196230E+00
IGR J12349-6434        1.8870889E+02  -6.4567810E+01   2.4757907E-04  7.6048493E+00
3A 1246-588            1.9243138E+02  -5.9099365E+01   4.4460761E-04  6.7476578E+00
GX 304-1               1.9533766E+02  -6.1595665E+01   1.9339922E-04  6.5585904E+00
