INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1705: Observation start 1999-12-31T23:58 = MJD 51544
Total Observation GTI = 143226 seconds

ISGRI

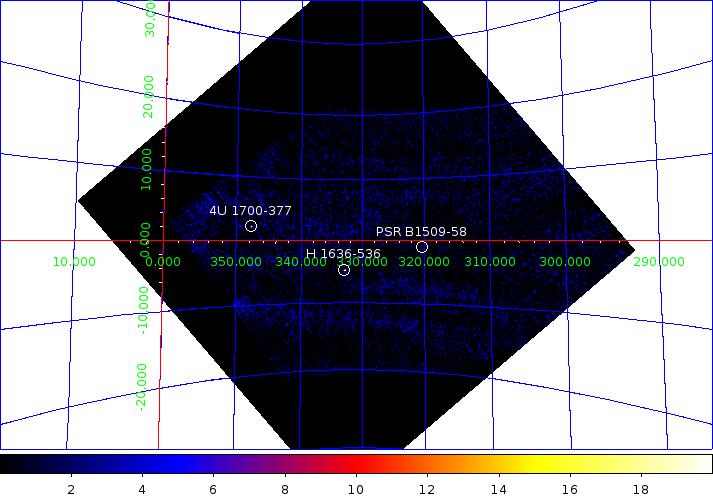

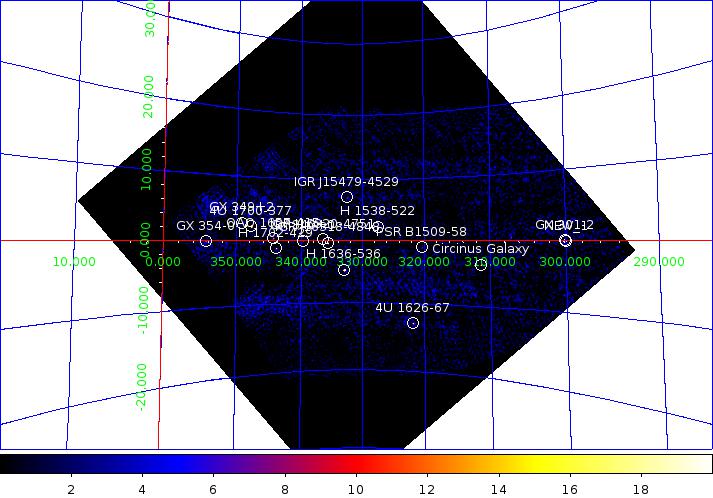

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.655  -62.772 0.3  300.097   -0.037  100.2  0.65 155.2    4.5  0.46   9.8
H 1636-536            250.239  -53.753 0.6  332.917   -4.823    8.6  0.12  69.3    3.1  0.10  31.5
4U 1700-377           255.989  -37.846 0.7  347.754   +2.171   13.7  0.30  45.5    4.9  0.23  20.9
IGR J16318-4848       247.947  -48.808 1.0  335.621   -0.439    4.0  0.12  32.7    0.7  0.10   7.5
H 1538-522            235.594  -52.385 1.1  327.419   +2.166    3.0  0.11  28.6    0.0  0.00   0.0
4U 1626-67            248.078  -67.474 1.5  321.780  -13.103    6.4  0.34  19.0    0.0  0.00   0.0
H 1702-429            256.566  -43.047 1.5  343.878   -1.326    3.8  0.20  19.4    1.4  0.15   9.4
Circinus Galaxy       213.271  -65.325 1.7  311.322   -3.791    2.8  0.17  16.2    0.7  0.14   5.1
IGR J16320-4751       248.008  -47.877 1.8  336.328   +0.167    1.9  0.13  15.4    0.0  0.00   0.0
OAO 1657-415          255.233  -41.645 2.0  344.391   +0.309    2.7  0.20  13.3    1.1  0.16   7.0
PSR B1509-58          228.457  -59.158 2.1  320.299   -1.174    1.5  0.11  13.1    0.9  0.09  10.0
GX 354-0              263.025  -33.806 2.6  354.342   -0.159   13.9  1.36  10.2    4.7  1.00   4.7
IGR J15479-4529       237.081  -45.485 2.4  332.447   +7.008    1.5  0.14  11.0    0.7  0.11   6.6
GX 349+2              256.412  -36.441 2.2  349.078   +2.753    4.3  0.36  12.1    0.0  0.00   0.0
4U 1323-62            201.692  -62.059 2.7  307.058   +0.529    2.2  0.23   9.8    0.0  0.00   0.0
GX 340+0              251.479  -45.612 2.4  339.601   -0.096    1.5  0.14  11.1    0.0  0.00   0.0
IGR J16393-4643       249.713  -46.728 2.9  337.956   +0.090    1.1  0.13   8.9    0.0  0.00   0.0
H 1705-440            257.283  -44.118 3.2  343.332   -2.384    1.6  0.19   8.0    0.0  0.00   0.0
IGR J14488-5942       222.180  -59.733 3.1  317.221   -0.155    1.0  0.12   8.2    0.0  0.00   0.0
IGR J17252-3616       261.313  -36.274 0.0  351.511   -0.360    3.4  0.00   6.3    0.0  0.00   0.0
4U 1705-32            257.237  -32.319 0.0  352.796   +4.673    5.6  0.00   6.3    0.0  0.00   0.0
PSR J1649-4349        252.343  -43.873 3.6  341.325   +0.559    1.1  0.15   7.2    0.0  0.00   0.0
4U 1735-444           264.773  -44.528 3.8  345.999   -7.053    2.6  0.39   6.6    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV

    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5145523E+02  -4.5611057E+01   4.5399383E-02   5.4300739E+02
H 1624-490             2.4702164E+02  -4.9194218E+01   6.4637628E-03   1.6430736E+02
H 1705-440             2.5723721E+02  -4.4106518E+01   3.6546465E-02   6.9512856E+01
Cir X-1                2.3016591E+02  -5.7163734E+01   2.3659733E-03   5.3299397E+01
PSR B1509-58           2.2846611E+02  -5.9130997E+01   3.0740487E-04   5.9244647E+00
IGR J14488-5942        2.2220628E+02  -5.9694271E+01   3.7069002E-04   5.5756397E+00
