INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1706: Observation start 2016-07-26T00:42 = MJD 57595.03
Total Observation GTI = 89233 seconds

ISGRI

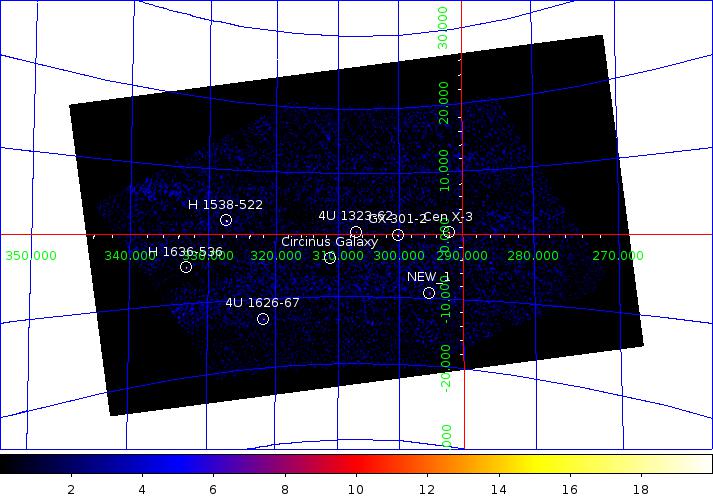

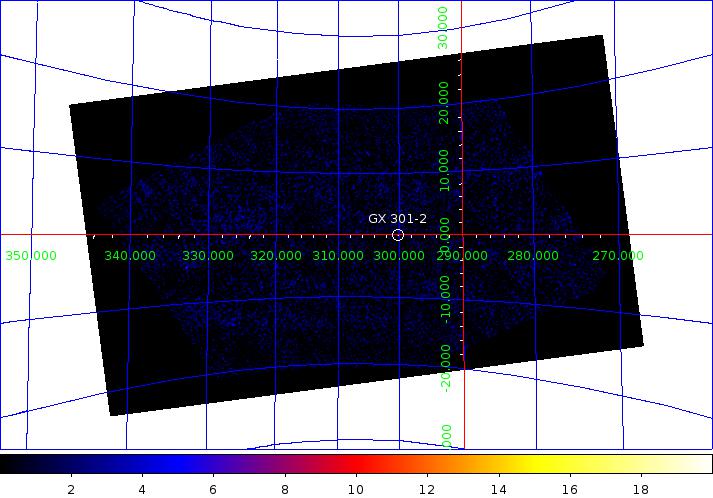

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.657  -62.770 0.2  300.098   -0.035  117.1  0.17 696.9    4.6  0.12  38.4
H 1538-522            235.617  -52.383 1.0  327.431   +2.159    8.5  0.27  31.9    0.8  0.22   3.9
Cen X-3               170.310  -60.607 1.4  292.084   +0.351    4.2  0.20  21.1    0.0  0.00   0.0
H 1636-536            250.301  -53.756 1.5  332.939   -4.852   11.4  0.58  19.6    3.7  0.46   8.2
4U 1626-67            248.087  -67.437 2.0  321.811  -13.081    6.1  0.44  14.0    0.0  0.00   0.0
Circinus Galaxy       213.231  -65.353 1.9  311.297   -3.814    2.4  0.17  14.3    1.2  0.13   9.4
4U 1323-62            201.633  -62.136 2.2  307.020   +0.457    2.1  0.16  12.6    0.7  0.12   5.7
PSR B1509-58          228.434  -59.115 2.8  320.311   -1.132    1.6  0.16   9.5    0.6  0.13   4.9
1E 1145.1-6141        176.766  -61.928 4.1  295.436   +0.003    1.1  0.18   6.2    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV

    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 301-2               1.8665759E+02  -6.2769806E+01   9.0549523E-03   1.9080116E+02
Cir X-1                2.3017030E+02  -5.7164776E+01   6.2924437E-03   1.3318971E+02
Cen X-3                1.7031628E+02  -6.0620934E+01   2.4769222E-03   5.7819660E+01
1E 1145.1-6141         1.7687900E+02  -6.1955524E+01   5.3364690E-04   1.5078689E+01
4U 1323-62             2.0164639E+02  -6.2125038E+01   5.2448240E-04   1.4258541E+01
IGR J14488-5942        2.2220628E+02  -5.9694271E+01   3.5227361E-04   7.9792557E+00
PSR B1509-58           2.2850211E+02  -5.9147663E+01   3.0863032E-04   6.7879028E+00
