INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1708: Observation start 2016-07-31T10:46 = MJD 57600.449
Total Observation GTI = 121942 seconds

ISGRI

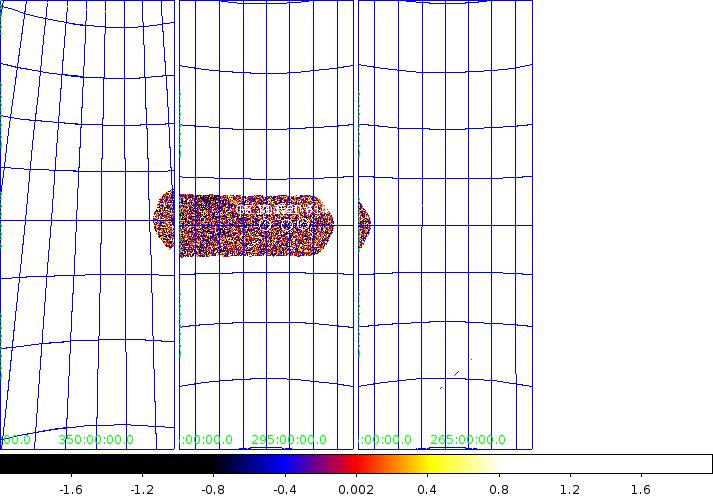

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.654  -62.767 0.4  300.096   -0.032   19.1  0.14 135.3    1.4  0.12  11.5
H 1636-536            250.246  -53.756 0.7  332.917   -4.827   11.5  0.22  53.0    4.9  0.17  28.1
OAO 1657-415          255.209  -41.654 1.0  344.373   +0.317   18.2  0.57  31.9    3.0  0.44   6.9
4U 1700-377           255.972  -37.835 1.1  347.755   +2.188   29.3  1.09  26.8   10.8  0.80  13.4
IGR J16318-4848       247.963  -48.814 1.1  335.623   -0.452    5.6  0.21  27.0    1.3  0.17   7.5
GX 340+0              251.452  -45.615 1.3  339.587   -0.084    6.4  0.29  22.0    0.0  0.00   0.0
1E 1145.1-6141        176.869  -61.962 1.5  295.492   -0.018    2.9  0.15  18.8    1.1  0.13   8.2
4U 1626-67            248.076  -67.459 1.9  321.791  -13.092    6.3  0.43  14.7    0.0  0.00   0.0
Cen X-3               170.318  -60.635 1.9  292.097   +0.325    2.7  0.18  14.9    0.0  0.00   0.0
H 1538-522            235.622  -52.380 2.3  327.435   +2.159    1.9  0.16  11.9    0.5  0.00   3.6
Circinus Galaxy       213.300  -65.353 2.0  311.325   -3.822    2.1  0.16  13.5    0.8  0.13   6.0
H 1702-429            256.574  -43.044 2.1  343.885   -1.330    6.8  0.51  13.3    2.7  0.43   6.4
4U 1323-62            201.641  -62.102 2.8  307.029   +0.490    1.3  0.14   9.4    1.0  0.12   8.4
H 1608-522            243.245  -52.419 2.5  330.958   -0.876    1.8  0.17  10.5    0.8  0.14   5.6
PSR B1509-58          228.491  -59.118 2.8  320.334   -1.149    1.3  0.14   9.3    0.9  0.12   7.9
IGR J12349-6434       188.747  -64.466 3.9  301.160   -1.651    0.9  0.14   6.6    0.0  0.00   0.0
4U 1543-624           236.970  -62.502 4.4  321.796   -6.282    1.0  0.18   5.7    0.0  0.00   0.0
IGR J12415-5750       190.404  -57.803 4.3  301.619   +5.043    0.9  0.16   5.9    0.0  0.00   0.0
IGR J14003-6326       210.125  -63.401 4.6  310.571   -1.558    0.8  0.14   5.4    0.0  0.00   0.0
NGC 6300              259.307  -62.829 4.6  328.499  -14.080    3.3  0.60   5.5    0.0  0.00   0.0

JEM-X


JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
H 1624-490             2.4702487E+02  -4.9193680E+01   3.3864544E-03   3.1615875E+01
IGR J16393-4643        2.4975060E+02  -4.6644573E+01   1.7062337E-03   5.0562625E+00
GX 301-2               1.8665503E+02  -6.2768471E+01   3.5044223E-03   9.2827309E+01
Cen X-3                1.7031235E+02  -6.0618713E+01   1.5047177E-03   3.9794792E+01
1E 1145.1-6141         1.7687675E+02  -6.1957241E+01   1.1660779E-03   3.3001087E+01
4U 1323-62             2.0165865E+02  -6.2130020E+01   6.6114590E-04   1.7797979E+01
3A 1246-588            1.9243111E+02  -5.9094559E+01   7.3023123E-04   1.1839145E+01
1H 1254-690            1.9441057E+02  -6.9280602E+01   3.5096216E-03   8.6424475E+00
PSR B1509-58           2.2847136E+02  -5.9134270E+01   2.4409787E-04   6.9511132E+00
