INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1709: Observation start 2016-08-04T01:11 = MJD 57604.05
Total Observation GTI = 91791 seconds

ISGRI

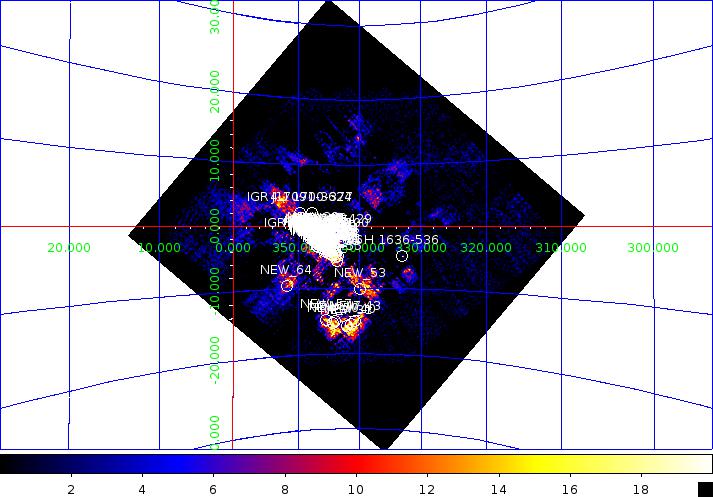

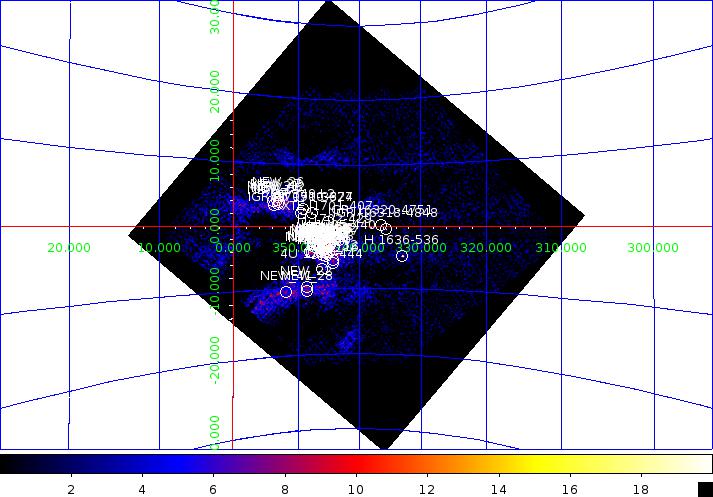

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.989  -37.841 0.4  347.758   +2.174   21.4  0.15 139.9    7.4  0.12  61.8
H 1636-536            250.232  -53.753 0.6  332.914   -4.819   10.9  0.17  65.4    3.0  0.13  22.9
H 1702-429            256.574  -43.041 0.6  343.887   -1.327    8.3  0.13  62.2    4.0  0.11  36.9
GX 349+2              256.444  -36.410 0.0  349.118   +2.751    4.3  0.00  26.3    0.0  0.00   0.0
IGR J16318-4848       247.966  -48.818 1.1  335.622   -0.456    3.6  0.13  27.4    0.0  0.00   0.0
IGR J17091-3624       257.304  -36.406 1.4  349.536   +2.199    3.6  0.17  21.6    2.5  0.13  19.2
H 1705-440            257.216  -44.114 1.8  343.307   -2.342    2.0  0.13  15.6    0.0  0.00   0.0
IGR J16320-4751       248.002  -47.888 1.5  336.318   +0.163    2.6  0.14  19.2    0.0  0.00   0.0
4U 1735-444           264.737  -44.470 2.2  346.035   -7.001    2.3  0.18  12.5    0.0  0.00   0.0
H 1538-522            235.566  -52.422 2.7  327.383   +2.147    2.1  0.22   9.9    0.0  0.00   0.0
SAX J1744.7-2916      266.127  -29.318 2.7  359.547   +0.007    4.9  0.50   9.8    0.0  0.00   0.0
XTE J1701-407         255.425  -40.847 2.1  345.110   +0.685    1.8  0.14  13.3    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV


Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5145213E+02  -4.5608551E+01   4.1635834E-02   6.5636005E+02
H 1705-440             2.5722861E+02  -4.4101807E+01   3.5454210E-02   4.4944312E+02
GX 349+2               2.5644312E+02  -3.6417004E+01   6.8593450E-02   4.1859314E+02
H 1624-490             2.4702087E+02  -4.9194321E+01   6.6511394E-03   1.3437648E+02
4U 1708-40             2.5810471E+02  -4.0845890E+01   4.8002140E-03   9.1680473E+01
H 1702-429             2.5656464E+02  -4.3035683E+01   3.2545344E-03   5.7403484E+01
4U 1700-377            2.5600153E+02  -3.7835136E+01   2.9942712E-03   3.8368565E+01
XTE J1701-407          2.5543918E+02  -4.0847004E+01   6.4337155E-04   1.2336510E+01
