INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1710: Observation start 1999-12-31T23:58 = MJD 51544
Total Observation GTI = 174078 seconds

ISGRI

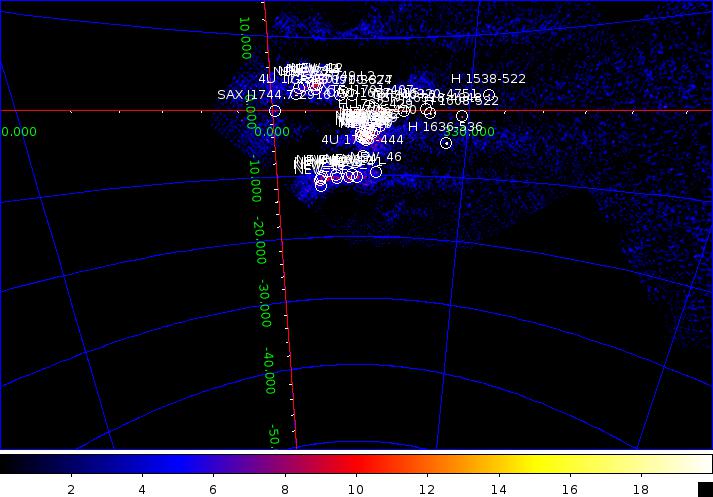

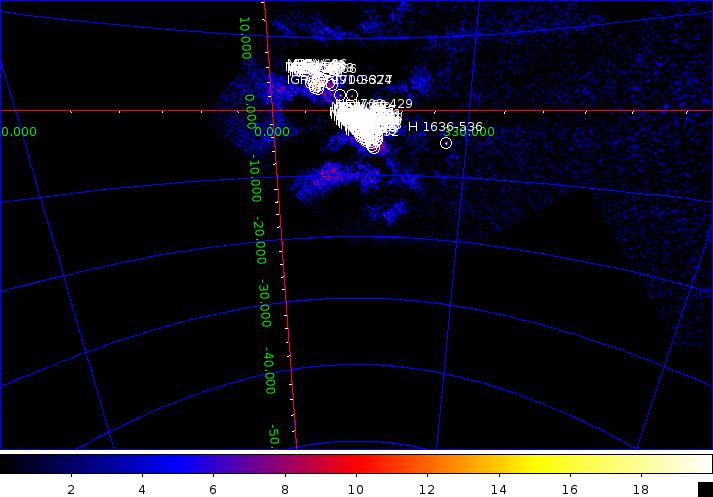

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cen X-3               170.321  -60.625 0.0  292.094   +0.336   18.4  0.00 116.4    0.0  0.00   0.0
H 1636-536            250.228  -53.754 0.5  332.912   -4.818   11.6  0.13  88.1    4.3  0.10  40.9
H 1702-429            256.570  -43.039 0.6  343.887   -1.324    8.7  0.13  68.3    3.7  0.10  37.0
4U 1700-377           255.982  -37.840 0.7  347.755   +2.179    7.5  0.14  52.2    2.9  0.12  25.3
GX 301-2              186.651  -62.771 0.8  300.095   -0.036    6.7  0.15  45.0    0.0  0.00   0.0
IGR J16320-4751       248.003  -47.879 0.9  336.325   +0.168    4.1  0.11  35.6    0.0  0.00   0.0
IGR J16318-4848       247.962  -48.816 0.9  335.621   -0.452    3.9  0.11  33.8    0.0  0.00   0.0
GX 340+0              251.454  -45.624 1.0  339.581   -0.091    3.7  0.11  32.8    0.0  0.00   0.0
IGR J17091-3624       257.288  -36.406 1.3  349.529   +2.209    3.9  0.17  23.7    2.5  0.13  18.8
GX 349+2              256.443  -36.425 1.2  349.106   +2.742    4.3  0.17  26.0    0.0  0.00   0.0
H 1538-522            235.586  -52.375 1.2  327.421   +2.177    3.7  0.15  24.1    0.0  0.00   0.0
H 1705-440            257.230  -44.117 1.7  343.310   -2.353    2.1  0.13  16.1    0.0  0.00   0.0
OAO 1657-415          255.192  -41.674 1.5  344.350   +0.315    2.4  0.12  19.5    0.0  0.00   0.0
H 1608-522            243.175  -52.435 1.7  330.916   -0.858    2.1  0.13  16.4    0.0  0.00   0.0
SAX J1744.7-2916      266.184  -29.328 2.6  359.565   -0.040    5.4  0.53  10.2    0.0  0.00   0.0
4U 1735-444           264.744  -44.477 2.1  346.032   -7.009    2.4  0.19  12.8    0.0  0.00   0.0
XTE J1701-407         255.410  -40.885 1.9  345.073   +0.670    1.8  0.13  14.3    0.0  0.00   0.0
4U 1722-30            261.888  -30.803 2.5  356.319   +2.298    3.3  0.00  10.5    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV

    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5145406E+02  -4.5608295E+01   5.7203293E-02   7.2439813E+02
GX 349+2               2.5644321E+02  -3.6417572E+01   5.6690510E-02   4.0709225E+02
H 1705-440             2.5722919E+02  -4.4100845E+01   3.8726605E-02   3.9665073E+02
H 1624-490             2.4702029E+02  -4.9194077E+01   5.3692753E-03   1.2856467E+02
4U 1708-40             2.5810318E+02  -4.0847931E+01   4.5181913E-03   7.7619019E+01
H 1702-429             2.5656363E+02  -4.3033958E+01   3.7700704E-03   5.5658890E+01
XTE J1701-407          2.5542625E+02  -4.0850819E+01   7.3068979E-04   1.2762599E+01
Cen X-3                1.7031767E+02  -6.0622326E+01   3.1325005E-02   2.0159471E+02
GX 301-2               1.8665598E+02  -6.2770203E+01   8.4604067E-04   2.9209444E+01
1E 1145.1-6141         1.7687433E+02  -6.1946400E+01   5.1760220E-04   1.4023499E+01
