INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1711: Observation start 2016-08-08T10:14 = MJD 57608.427
Total Observation GTI = 113203 seconds

ISGRI

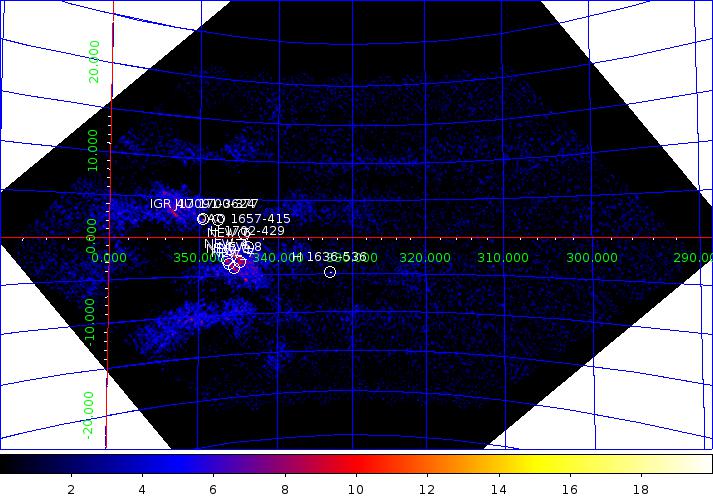

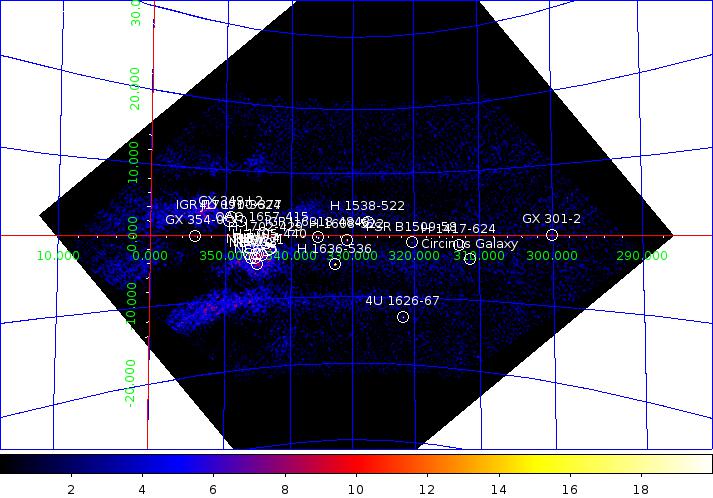

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
OAO 1657-415          255.202  -41.655 0.4  344.369   +0.321   21.9  0.17 129.3    3.9  0.13  29.6
4U 1700-377           255.984  -37.840 0.4  347.756   +2.177   23.5  0.22 108.7    7.7  0.16  46.5
H 1636-536            250.227  -53.749 0.7  332.915   -4.815    9.3  0.17  55.0    3.1  0.13  23.7
H 1702-429            256.560  -43.042 0.7  343.880   -1.320    8.1  0.17  46.5    3.3  0.13  24.5
H 1608-522            243.188  -52.425 0.8  330.929   -0.855    5.8  0.14  40.1    0.0  0.00   0.0
IGR J16318-4848       247.954  -48.824 1.1  335.612   -0.454    4.4  0.15  28.6    0.0  0.00   0.0
GX 301-2              186.621  -62.754 1.5  300.080   -0.021   10.0  0.54  18.4    0.0  0.00   0.0
H 1705-440            257.239  -44.119 1.9  343.313   -2.359    2.5  0.18  14.4    0.0  0.00   0.0
4U 1626-67            248.107  -67.450 1.6  321.807  -13.095    7.0  0.41  17.2    0.0  0.00   0.0
IGR J17091-3624       257.325  -36.431 2.0  349.526   +2.171    3.0  0.22  14.0    2.1  0.17  12.8
H 1538-522            235.619  -52.422 2.0  327.408   +2.127    1.9  0.14  13.6    0.0  0.00   0.0
Circinus Galaxy       213.356  -65.321 2.3  311.357   -3.800    2.2  0.18  11.9    1.4  0.15   9.3
GX 349+2              256.420  -36.400 2.2  349.114   +2.772    2.9  0.23  12.5    0.0  0.00   0.0
GX 354-0              262.978  -33.847 2.1  354.287   -0.149    4.4  0.34  13.0    0.0  0.00   0.0
H 1417-624            215.237  -62.711 2.5  312.988   -1.600    1.7  0.16  10.5    0.0  0.00   0.0
PSR B1509-58          228.567  -59.165 2.3  320.343   -1.209    1.6  0.14  11.5    0.0  0.00   0.0
4U 1735-444           264.737  -44.470 2.8  346.035   -7.001    2.5  0.26   9.5    0.0  0.00   0.0
4U 1323-62            201.677  -62.205 2.8  307.031   +0.385    2.2  0.24   9.4    0.0  0.00   0.0
KS 1741-293           266.231  -29.397 2.9  359.528   -0.111    5.3  0.59   9.0    0.0  0.00   0.0
4U 1722-30            261.972  -30.799 3.7  356.362   +2.240    2.9  0.42   7.0    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV

     Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5145169E+02  -4.5608521E+01   4.0814470E-02   4.5646225E+02
GX 349+2               2.5644354E+02  -3.6418438E+01   7.1311913E-02   3.6873068E+02
H 1705-440             2.5722678E+02  -4.4102798E+01   3.6647562E-02   3.3666916E+02
H 1624-490             2.4702142E+02  -4.9192009E+01   6.2947297E-03   8.3398415E+01
4U 1708-40             2.5810327E+02  -4.0844383E+01   4.6548755E-03   6.6695595E+01
H 1702-429             2.5656412E+02  -4.3037552E+01   4.4716243E-03   5.6099934E+01
4U 1700-377            2.5598293E+02  -3.7834599E+01   3.7852323E-03   3.8324173E+01
PSR B1509-58           2.2847693E+02  -5.9131027E+01   2.8056375E-04   5.3748355E+00
