INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1712: Observation start 2016-08-10T23:44 = MJD 57610.99
Total Observation GTI = 112550 seconds

ISGRI

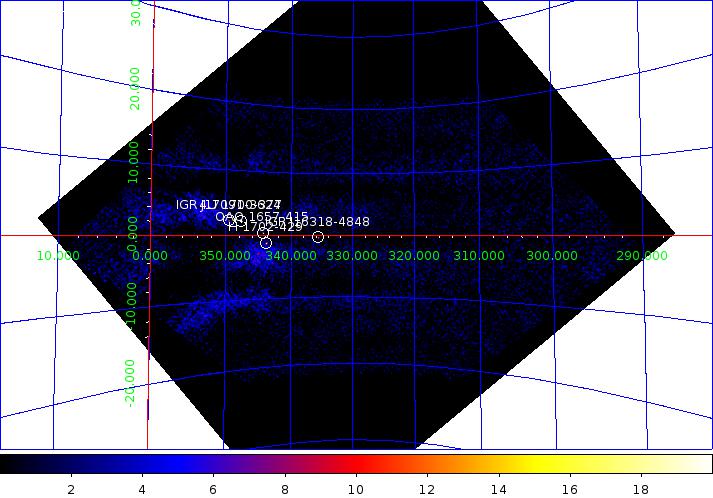

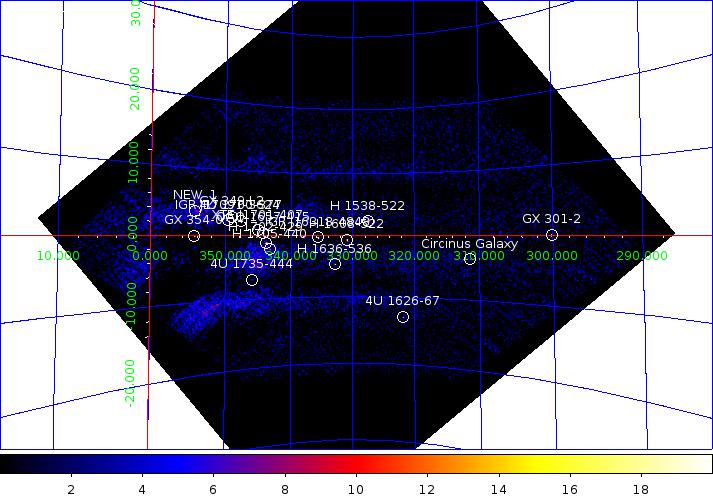

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.986  -37.842 0.3  347.756   +2.175   55.5  0.20 276.9   17.5  0.15 115.9
H 1702-429            256.572  -43.033 0.8  343.893   -1.321    7.4  0.17  44.4    2.9  0.13  23.0
H 1608-522            243.179  -52.425 0.8  330.925   -0.852    6.2  0.15  42.5    0.0  0.00   0.0
GX 301-2              186.671  -62.774 0.8  300.105   -0.038   22.7  0.55  41.6    0.0  0.00   0.0
IGR J16318-4848       247.964  -48.814 0.8  335.624   -0.452    5.6  0.14  39.8    1.6  0.11  14.9
OAO 1657-415          255.198  -41.666 0.9  344.359   +0.317    6.3  0.17  36.4    2.1  0.13  15.8
H 1538-522            235.584  -52.384 1.2  327.415   +2.170    3.8  0.15  25.6    0.0  0.00   0.0
H 1636-536            250.215  -53.729 1.6  332.926   -4.796    3.0  0.17  18.1    0.0  0.00   0.0
H 1705-440            257.227  -44.093 2.1  343.328   -2.337    2.2  0.17  13.2    0.0  0.00   0.0
GX 354-0              263.000  -33.825 1.6  354.315   -0.152    5.7  0.33  17.4    0.0  0.00   0.0
IGR J17091-3624       257.306  -36.384 2.1  349.555   +2.211    3.0  0.23  12.7    2.1  0.18  12.1
GX 349+2              256.432  -36.431 2.0  349.096   +2.746    3.0  0.22  13.7    0.0  0.00   0.0
4U 1626-67            248.081  -67.468 2.0  321.786  -13.099    5.8  0.42  14.0    0.0  0.00   0.0
Circinus Galaxy       213.369  -65.332 2.3  311.359   -3.811    2.3  0.20  11.7    0.9  0.16   5.7
4U 1735-444           264.756  -44.472 2.5  346.040   -7.013    2.6  0.24  10.5    0.0  0.00   0.0
XTE J1701-407         255.389  -40.851 2.4  345.090   +0.703    2.0  0.18  11.4    0.0  0.00   0.0
PSR B1509-58          228.478  -59.147 2.8  320.313   -1.171    1.3  0.14   9.3    0.0  0.00   0.0
4U 1323-62            201.523  -62.181 3.5  306.963   +0.419    1.8  0.25   7.3    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV

    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5145122E+02  -4.5608780E+01   3.4696303E-02   4.2896384E+02
H 1705-440             2.5722675E+02  -4.4101379E+01   3.0409124E-02   3.0175562E+02
GX 349+2               2.5644180E+02  -3.6417973E+01   4.8947945E-02   2.8781638E+02
4U 1700-377            2.5598505E+02  -3.7834766E+01   8.9423386E-03   9.5151665E+01
H 1624-490             2.4702162E+02  -4.9194344E+01   5.2105477E-03   6.9441422E+01
4U 1708-40             2.5810687E+02  -4.0833717E+01   3.6913580E-03   5.5985165E+01
H 1702-429             2.5656506E+02  -4.3037842E+01   3.5211586E-03   4.7844082E+01
PSR B1509-58           2.2847255E+02  -5.9128746E+01   2.9684097E-04   7.6839461E+00
Cir X-1                2.3013379E+02  -5.7175976E+01   2.5232523E-04   5.9621854E+00


GX 340+0               2.5145122E+02  -4.5608780E+01   3.4696303E-02   4.2896384E+02
H 1705-440             2.5722675E+02  -4.4101379E+01   3.0409124E-02   3.0175562E+02
GX 349+2               2.5644180E+02  -3.6417973E+01   4.8947945E-02   2.8781638E+02
4U 1700-377            2.5598505E+02  -3.7834766E+01   8.9423386E-03   9.5151665E+01
H 1624-490             2.4702162E+02  -4.9194344E+01   5.2105477E-03   6.9441422E+01
4U 1708-40             2.5810687E+02  -4.0833717E+01   3.6913580E-03   5.5985165E+01
H 1702-429             2.5656506E+02  -4.3037842E+01   3.5211586E-03   4.7844082E+01
NEW SOURCE             2.4159161E+02  -4.9513474E+01   1.1021718E-03   1.0495214E+01
NEW SOURCE             2.3950284E+02  -4.7548920E+01   2.1227989E-03   1.0099135E+01
PSR B1509-58           2.2847255E+02  -5.9128746E+01   2.9684097E-04   7.6839461E+00
Cir X-1                2.3013379E+02  -5.7175976E+01   2.5232523E-04   5.9621854E+00
GX 340+0               2.5144756E+02  -4.5608479E+01   3.4173839E-02   4.2437564E+02
H 1705-440             2.5722388E+02  -4.4101490E+01   3.0873740E-02   3.1343253E+02
GX 349+2               2.5643988E+02  -3.6418781E+01   4.9661342E-02   2.8052402E+02
4U 1700-377            2.5598666E+02  -3.7838428E+01   1.0271871E-02   1.0020309E+02
H 1624-490             2.4700850E+02  -4.9194462E+01   5.2862787E-03   7.1595352E+01
4U 1708-40             2.5810226E+02  -4.0840599E+01   3.7463547E-03   5.5724155E+01
H 1702-429             2.5656009E+02  -4.3037987E+01   3.4416753E-03   4.7222351E+01
NEW SOURCE             2.4159941E+02  -4.9507786E+01   9.9959259E-04   1.0840554E+01
NEW SOURCE             2.4609785E+02  -5.0529812E+01   7.9897704E-04   1.0733420E+01
