INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1713: Observation start 2016-08-14T11:41 = MJD 57614.487
Total Observation GTI = 108689 seconds

ISGRI

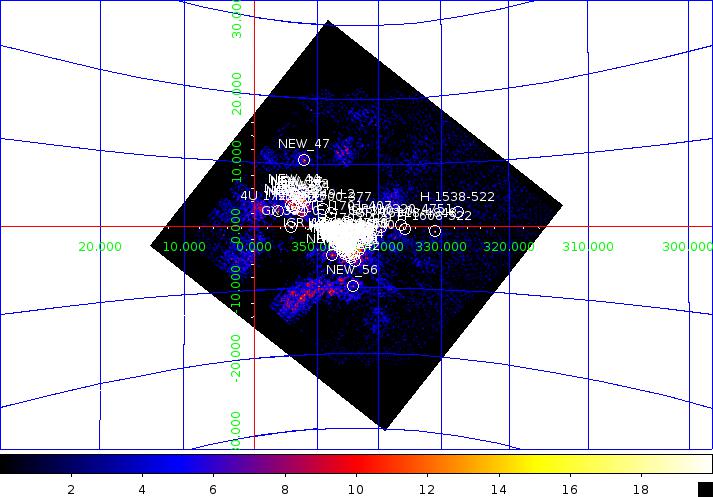

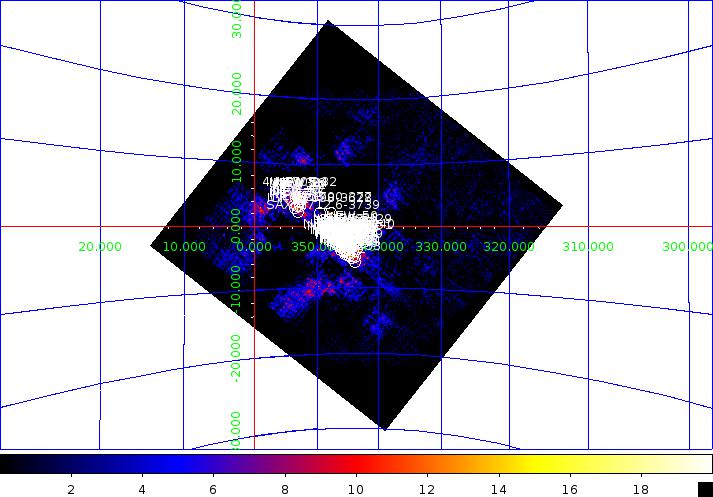

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.987  -37.842 0.2  347.756   +2.175   55.6  0.13 439.5   18.3  0.10 189.0
H 1702-429            256.570  -43.032 0.8  343.893   -1.319    5.0  0.12  41.2    2.0  0.00  21.4
GX 349+2              256.453  -36.448 0.8  349.093   +2.722    5.4  0.14  39.3    0.0  0.00   0.0
H 1705-440            257.228  -44.093 1.6  343.329   -2.337    2.2  0.12  18.2    1.2  0.00  12.6
GX 340+0              251.470  -45.634 1.2  339.580   -0.106    3.2  0.13  25.0    0.0  0.00   0.0
GX 354-0              262.985  -33.834 1.1  354.301   -0.147    5.2  0.19  27.9    0.0  0.00   0.0
H 1608-522            243.181  -52.423 1.2  330.927   -0.851    4.9  0.21  23.8    0.0  0.00   0.0
IGR J16318-4848       247.952  -48.801 1.3  335.628   -0.438    3.2  0.14  22.3    0.0  0.00   0.0
IGR J16320-4751       248.002  -47.888 1.4  336.317   +0.162    2.9  0.14  21.4    0.0  0.00   0.0
XTE J1701-407         255.468  -40.843 1.7  345.133   +0.661    1.9  0.12  16.0    0.0  0.00   0.0
IGR J17195-4100       259.908  -40.966 0.0  347.023   -2.114    1.7  0.00  13.8    0.0  0.00   0.0
4U 1722-30            261.811  -30.755 2.0  356.322   +2.379    3.2  0.00  13.8    0.0  0.00   0.0
H 1538-522            235.566  -52.387 1.9  327.403   +2.174    4.8  0.34  14.3    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV

    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 349+2               2.5644324E+02  -3.6417007E+01   9.2757687E-02   6.8849481E+02
GX 340+0               2.5145016E+02  -4.5607853E+01   4.6687085E-02   6.7480127E+02
H 1705-440             2.5722797E+02  -4.4102154E+01   2.9667372E-02   4.7782645E+02
4U 1700-377            2.5598959E+02  -3.7838589E+01   1.7736536E-02   2.2799959E+02
4U 1708-40             2.5810254E+02  -4.0837887E+01   4.4364687E-03   1.0537217E+02
H 1702-429             2.5656409E+02  -4.3035740E+01   4.4393605E-03   9.9097450E+01
H 1624-490             2.4700397E+02  -4.9191437E+01   6.2103109E-03   6.6351425E+01
XTE J1701-407          2.5544806E+02  -4.0861778E+01   1.1405310E-03   2.2351395E+01
