INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1716: Observation start 2016-08-22T11:54 = MJD 57622.496
Total Observation GTI = 53297 seconds

ISGRI

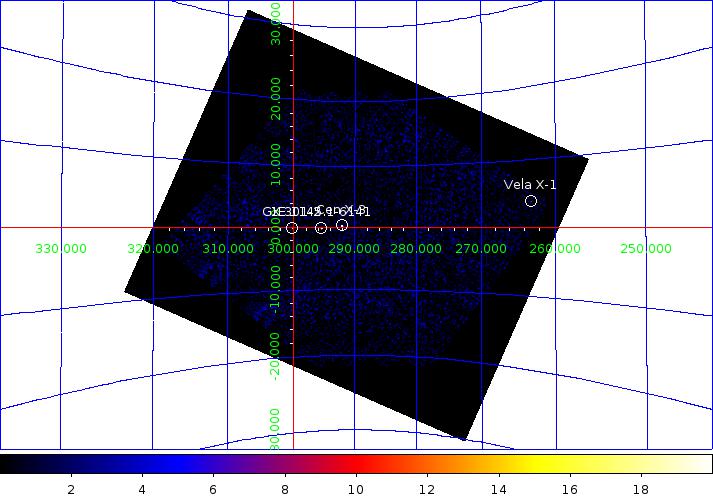

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cen X-3               170.312  -60.624 0.4  292.090   +0.335   15.4  0.15 105.5    1.1  0.12   9.1
1E 1145.1-6141        176.860  -61.953 0.6  295.485   -0.010   10.7  0.16  67.9    3.6  0.13  27.0
GX 301-2              186.671  -62.763 1.1  300.104   -0.027    5.9  0.21  27.6    0.0  0.00   0.0
Vela X-1              135.530  -40.582 2.5  263.080   +3.913   58.2  5.45  10.7    0.0  0.00   0.0
4U 1323-62            201.845  -62.203 4.5  307.109   +0.377    2.2  0.39   5.6    1.7  0.33   5.2
IGR J11435-6109       176.131  -61.117 4.4  294.939   +0.712    0.9  0.16   5.7    0.0  0.00   0.0
3A 1246-588           192.417  -59.018 5.3  302.703   +3.853    1.3  0.28   4.6    0.0  0.00   0.0
IGR J13408-6836       205.134  -68.515 5.3  307.423   -6.073    2.5  0.00   4.6    0.0  0.00   0.0

JEM-X

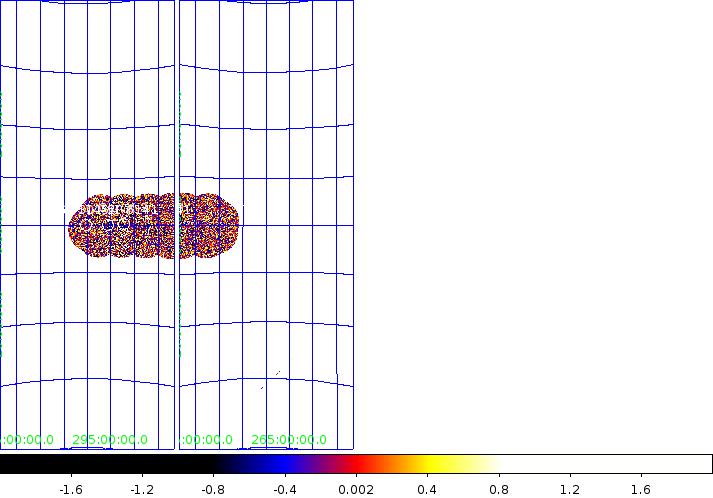

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cen X-3                1.7031236E+02  -6.0623314E+01   2.0283129E-02   3.0765582E+02
1E 1145.1-6141         1.7687184E+02  -6.1953896E+01   3.3710292E-03   7.1702026E+01
GX 301-2               1.8665793E+02  -6.2768734E+01   1.5461500E-03   2.4172506E+01
IGR J11435-6109        1.7600815E+02  -6.1136608E+01   3.9529303E-04   7.3526840E+00
