INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1717: Observation start 2016-08-25T21:42 = MJD 57625.905
Total Observation GTI = 47134 seconds

ISGRI

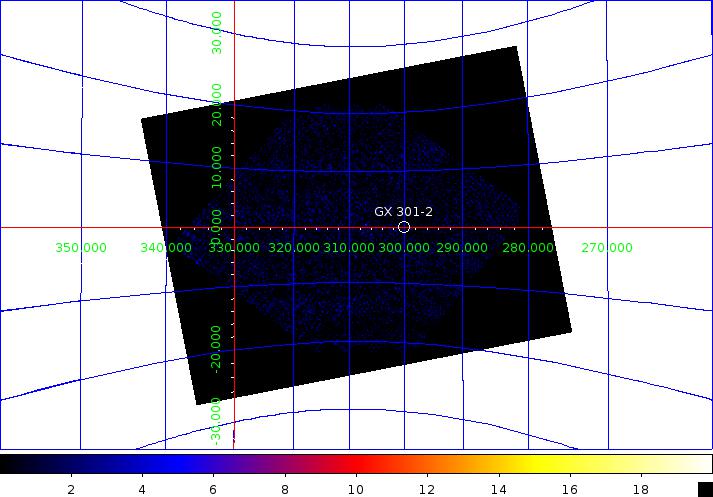

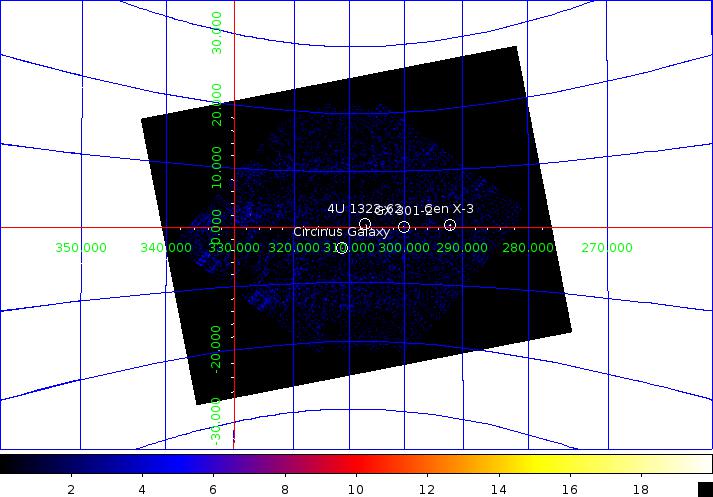

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2              186.653  -62.772 0.3  300.097   -0.037   32.5  0.20 162.6    2.1  0.16  12.8
Cen X-3               170.304  -60.626 0.8  292.087   +0.332   15.2  0.39  38.8    1.4  0.00   4.5
Circinus Galaxy       213.269  -65.356 1.9  311.312   -3.821    2.4  0.16  14.8    1.3  0.14   9.6
4U 1323-62            201.607  -62.142 2.0  307.007   +0.453    2.1  0.16  13.5    1.0  0.13   8.0
H 1538-522            235.619  -52.329 2.9  327.464   +2.201    4.0  0.45   8.9    0.0  0.00   0.0
1E 1145.1-6141        176.919  -62.043 3.7  295.535   -0.090    1.9  0.28   6.9    0.0  0.00   0.0
4U 1626-67            248.213  -67.453 3.8  321.832  -13.128    6.9  1.02   6.7    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV

    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 301-2               1.8665268E+02  -6.2767372E+01   1.3194645E-02   1.7673955E+02
4U 1323-62             2.0165834E+02  -6.2134785E+01   6.6425046E-04   1.9361048E+01
