INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1782: Observation start 2017-02-14T00:07 = MJD 57798.006
Total Observation GTI = 29640 seconds

ISGRI

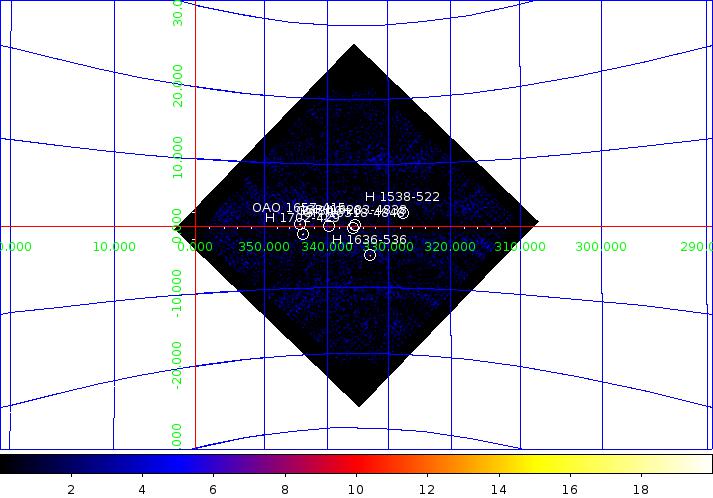

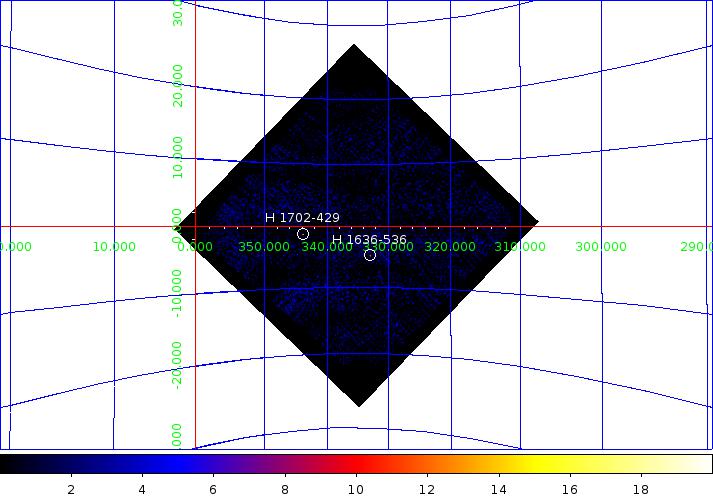

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
H 1702-429            256.554  -43.036 1.0  343.883   -1.313    8.2  0.26  31.5    3.4  0.21  15.9
OAO 1657-415          255.223  -41.661 1.3  344.374   +0.305    6.5  0.29  22.1    1.6  0.24   6.4
H 1636-536            250.229  -53.740 1.3  332.923   -4.809    4.6  0.21  22.3    2.3  0.18  12.9
GX 340+0              251.436  -45.603 1.7  339.589   -0.068    3.7  0.22  16.9    0.0  0.00   0.0
IGR J16318-4848       247.940  -48.793 1.9  335.629   -0.426    2.7  0.18  14.5    0.0  0.00   0.0
IGR J16283-4838       247.059  -48.662 2.3  335.324   +0.086    2.1  0.18  11.7    0.0  0.00   0.0
H 1538-522            235.650  -52.407 2.4  327.433   +2.128    2.7  0.24  11.2    0.0  0.00   0.0
4U 1700-377           255.992  -37.846 2.7  347.756   +2.169    4.1  0.43   9.6    0.0  0.00   0.0
GX 349+2              256.425  -36.405 3.0  349.113   +2.766    4.6  0.54   8.6    0.0  0.00   0.0
IGR J16479-4514       252.087  -45.162 0.0  340.220   -0.130    1.7  0.00   7.8    0.0  0.00   0.0
IGR J16320-4751       247.986  -47.857 4.0  336.333   +0.192    1.2  0.20   6.3    0.0  0.00   0.0
H 1705-440            257.087  -44.141 4.7  343.229   -2.284    1.5  0.28   5.3    0.0  0.00   0.0
IGR J16207-5129       245.113  -51.460 4.6  332.452   -0.986    1.1  0.20   5.5    0.0  0.00   0.0
4U 1735-444           264.798  -44.366 4.1  346.147   -6.983    3.2  0.52   6.2    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV


Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5144315E+02  -4.5609615E+01   3.8782094E-02   3.5276245E+02
H 1624-490             2.4700340E+02  -4.9192501E+01   4.5866584E-03   9.4677551E+01
H 1705-440             2.5721515E+02  -4.4092697E+01   3.9222647E-02   4.9965672E+01
IGR J16283-4838        2.4703156E+02  -4.8648968E+01   4.5125707E-04   8.5274401E+00
