INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1783: Observation start 2017-02-17T10:05 = MJD 57801.421
Total Observation GTI = 48942 seconds

ISGRI

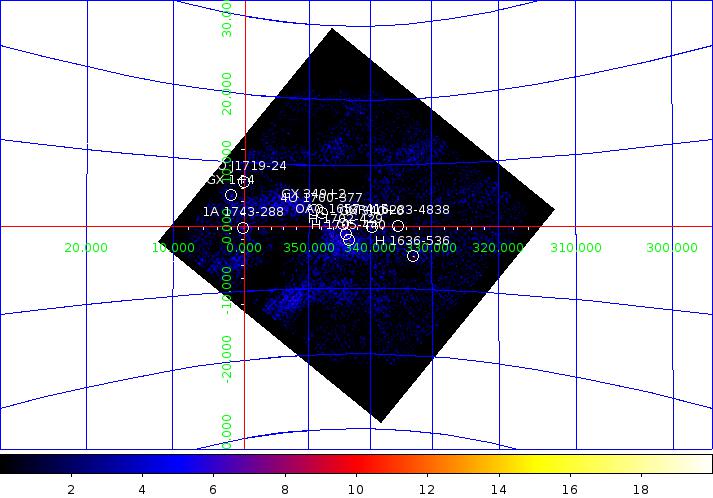

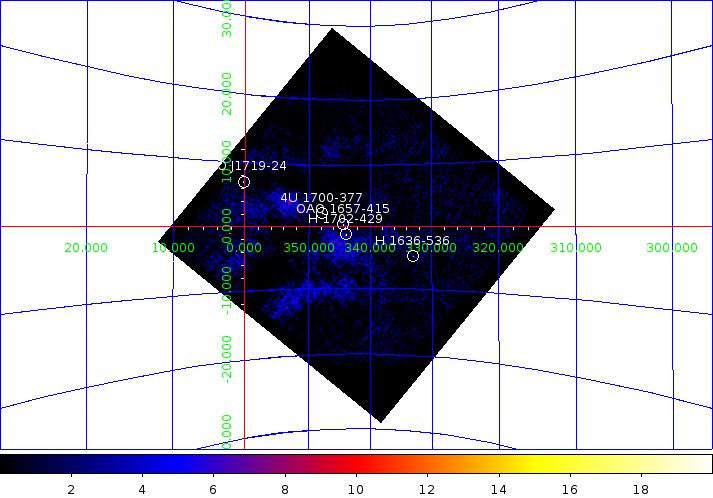

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.980  -37.841 0.4  347.754   +2.179   20.3  0.18 112.0    7.2  0.15  47.6
OAO 1657-415          255.203  -41.653 0.6  344.372   +0.321    9.3  0.16  57.1    2.8  0.14  20.6
GRO J1719-24          259.894  -25.010 0.6    0.143   +7.002   91.4  1.49  61.5   50.9  1.11  46.0
H 1702-429            256.577  -43.029 0.8  343.898   -1.322    7.3  0.17  44.1    3.1  0.14  22.7
H 1636-536            250.237  -53.752 1.2  332.917   -4.821    6.1  0.24  25.6    2.8  0.20  14.1
GX 340+0              251.446  -45.623 1.2  339.578   -0.086    4.0  0.16  24.8    0.0  0.00   0.0
GX 349+2              256.437  -36.409 1.8  349.116   +2.756    3.1  0.20  15.7    0.0  0.00   0.0
H 1705-440            257.173  -44.090 2.5  343.307   -2.304    1.9  0.18  10.8    0.0  0.00   0.0
GX 1+4                263.024  -24.730 2.3    1.958   +4.792   22.7  1.91  11.9    0.0  0.00   0.0
1A 1743-288           266.740  -28.868 2.5    0.211   -0.215    7.2  0.68  10.6    0.0  0.00   0.0
GX 354-0              263.065  -33.813 2.7  354.355   -0.191    2.7  0.28   9.6    0.0  0.00   0.0
XTE J1701-407         255.350  -40.862 2.9  345.063   +0.721    1.5  0.17   9.1    0.0  0.00   0.0
IGR J16283-4838       247.062  -48.637 2.6  335.343   +0.102    1.9  0.18  10.3    0.0  0.00   0.0
1E 1740.7-2942        266.021  -29.774 3.5  359.111   -0.152    4.1  0.56   7.3    2.7  0.00   6.2
H 1538-522            235.635  -52.390 3.5  327.436   +2.147    2.6  0.36   7.3    0.0  0.00   0.0
SAX J1712.6-3739      258.161  -37.659 3.9  348.931   +0.906    1.3  0.20   6.5    0.0  0.00   0.0

JEM-X

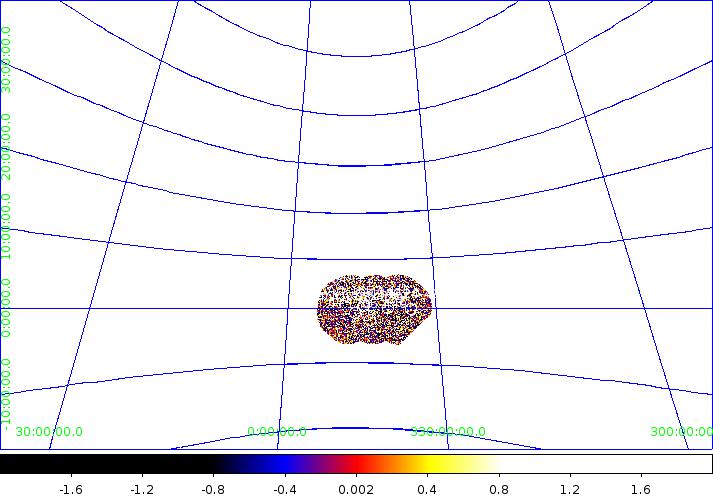

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 349+2               2.5642807E+02  -3.6424427E+01   5.7398602E-02   2.4247997E+02
H 1705-440             2.5723105E+02  -4.4100971E+01   4.0308058E-02   1.9783189E+02
GX 340+0               2.5145248E+02  -4.5612095E+01   4.5737658E-02   1.9368544E+02
4U 1708-40             2.5810434E+02  -4.0849419E+01   4.3253824E-03   3.7849251E+01
H 1702-429             2.5656332E+02  -4.3039932E+01   3.4390562E-03   2.5943029E+01
OAO 1657-415           2.5519815E+02  -4.1650520E+01   1.4651761E-03   1.5492711E+01
