INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1833: Observation start 2017-06-28T17:41 = MJD 57932.737
Total Observation GTI = 121263 seconds

ISGRI

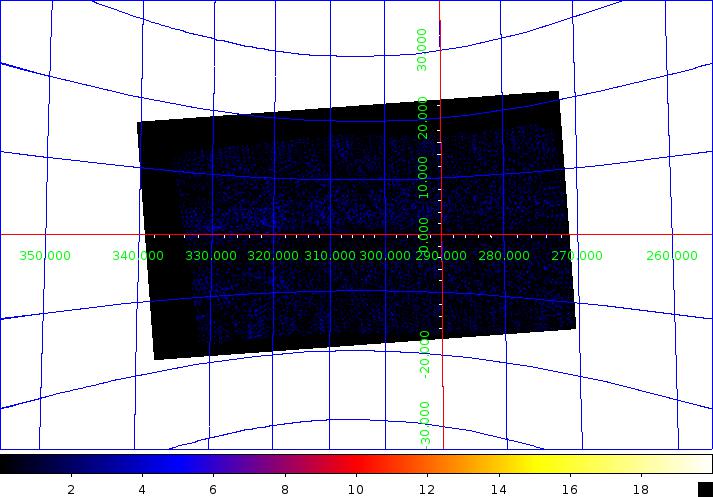

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
Cen X-3               170.316  -60.625 0.4  292.092   +0.335   17.3  0.16 110.6    1.0  0.14   7.6
GX 301-2              186.653  -62.775 0.6  300.097   -0.040    7.9  0.14  57.2    0.0  0.00   0.0
GRO J1008-57          152.444  -58.284 1.2  282.994   -1.815    5.6  0.23  24.0    0.0  0.00   0.0
Circinus Galaxy       213.322  -65.360 1.6  311.332   -3.832    2.1  0.12  17.5    0.8  0.11   7.4
1E 1145.1-6141        176.878  -61.964 1.8  295.496   -0.019    2.4  0.15  15.7    0.9  0.13   7.3
4U 1323-62            201.653  -62.138 1.9  307.029   +0.454    1.8  0.12  15.0    0.6  0.11   5.9
PSR B1509-58          228.522  -59.115 2.5  320.349   -1.155    1.4  0.13  10.8    0.0  0.00   0.0
4U 1626-67            248.007  -67.476 2.9  321.760  -13.084    3.4  0.37   9.0    0.0  0.00   0.0
H 1636-536            250.187  -53.666 4.6  332.962   -4.742   12.5  2.31   5.4    0.0  0.00   0.0
H 1538-522            235.499  -52.397 4.6  327.365   +2.191    1.4  0.25   5.5    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV



Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extr acted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locato r in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cen X-3                1.7031860E+02  -6.0621838E+01   2.7795963E-02   3.8188522E+02
GX 301-2               1.8665048E+02  -6.2766811E+01   1.2229909E-03   3.2246220E+01
GRO J1008-57           1.5244646E+02  -5.8287209E+01   2.4587433E-03   2.0498131E+01
1E 1145.1-6141         1.7686615E+02  -6.1953918E+01   7.9668080E-04   1.7539808E+01
