INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1842: Observation start 1999-12-31T23:58 = MJD 51544
Total Observation GTI = 58509 seconds

ISGRI

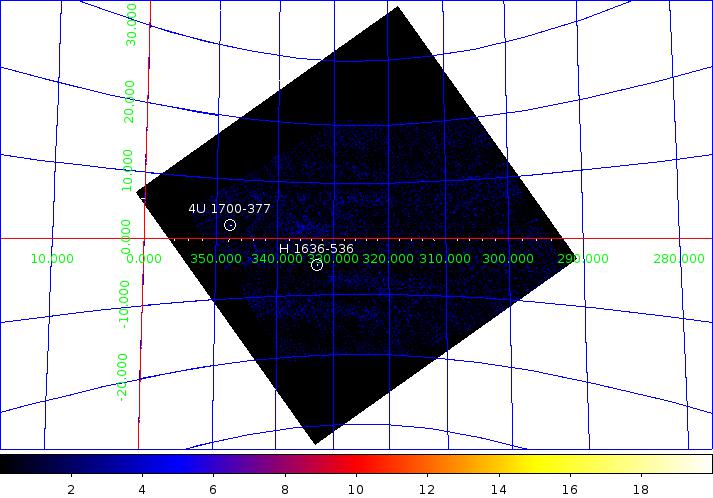

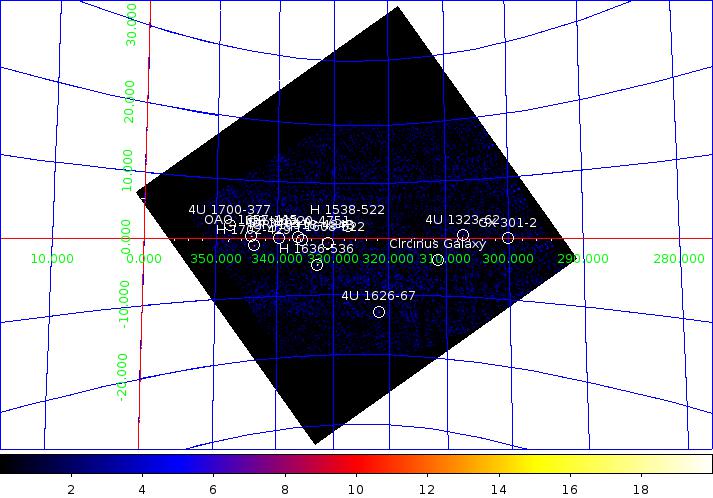

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           256.001  -37.843 0.6  347.762   +2.166   72.5  1.19  60.8   23.8  0.91  26.3
H 1636-536            250.234  -53.750 0.6  332.917   -4.818   11.4  0.20  56.3    4.7  0.17  27.5
OAO 1657-415          255.212  -41.655 1.3  344.374   +0.315   13.7  0.58  23.5    3.0  0.46   6.6
H 1538-522            235.604  -52.389 1.4  327.421   +2.159    3.3  0.16  20.9    0.0  0.00   0.0
IGR J16318-4848       247.945  -48.810 1.4  335.618   -0.440    4.3  0.22  20.2    0.0  0.00   0.0
H 1702-429            256.588  -43.033 1.7  343.900   -1.331    9.0  0.54  16.6    3.0  0.43   6.9
IGR J16320-4751       248.009  -47.896 1.8  336.315   +0.154    3.3  0.21  15.7    0.0  0.00   0.0
H 1608-522            243.226  -52.427 1.9  330.944   -0.873    2.4  0.17  14.4    1.2  0.15   8.4
4U 1626-67            248.085  -67.442 2.2  321.807  -13.084    5.6  0.45  12.6    0.0  0.00   0.0
GX 301-2              186.631  -62.776 2.0  300.087   -0.042    7.3  0.54  13.7    0.0  0.00   0.0
Circinus Galaxy       213.336  -65.381 2.2  311.330   -3.854    2.5  0.20  12.4    0.0  0.00   0.0
4U 1323-62            201.679  -62.125 2.5  307.043   +0.465    2.7  0.25  10.7    0.0  0.00   0.0
GX 340+0              251.465  -45.604 2.5  339.601   -0.083    3.1  0.29  10.8    0.0  0.00   0.0
4U 1543-624           237.051  -62.550 2.9  321.795   -6.343    1.7  0.18   9.1    0.0  0.00   0.0
4U 1344-60            206.951  -60.629 3.2  309.792   +1.489    1.8  0.22   8.1    0.0  0.00   0.0
PSR B1509-58          228.495  -59.133 3.6  320.328   -1.163    1.1  0.16   7.1    1.1  0.14   7.6
IGR J15479-4529       237.074  -45.446 4.1  332.468   +7.042    1.4  0.22   6.1    0.0  0.00   0.0
