INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1844: Observation start 1999-12-31T23:58 = MJD 51544
Total Observation GTI = 93335 seconds

ISGRI

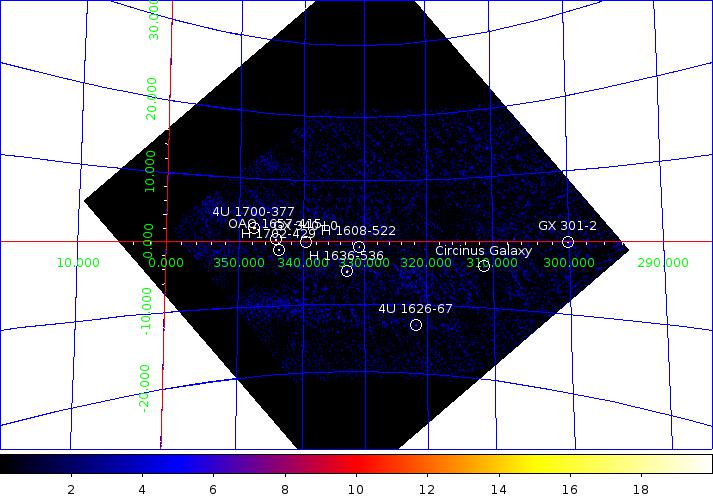

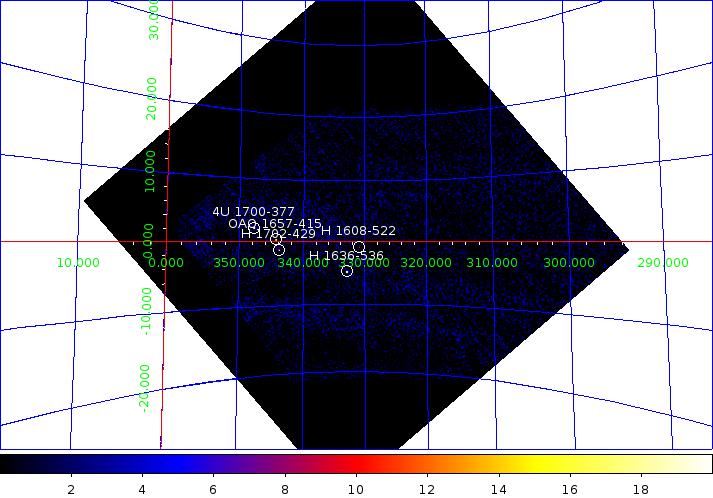

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
H 1636-536            250.227  -53.754 0.5  332.911   -4.818   12.9  0.14  90.9    5.1  0.12  41.2
4U 1700-377           255.978  -37.848 0.5  347.748   +2.177   31.6  0.41  77.1    9.5  0.33  29.2
OAO 1657-415          255.200  -41.652 0.6  344.371   +0.324   13.6  0.24  56.8    3.6  0.20  18.5
H 1702-429            256.545  -43.038 0.9  343.877   -1.308    8.6  0.24  35.6    3.7  0.20  18.4
H 1608-522            243.210  -52.424 1.1  330.939   -0.864    3.4  0.13  26.5    1.3  0.11  11.9
GX 301-2              186.661  -62.761 1.2  300.099   -0.025   14.5  0.61  23.8    0.0  0.00   0.0
4U 1626-67            248.042  -67.468 2.3  321.776  -13.088    5.2  0.44  11.7    0.0  0.00   0.0
Circinus Galaxy       213.294  -65.327 2.4  311.331   -3.796    2.1  0.19  10.9    0.9  0.17   5.4
GX 340+0              251.407  -45.633 2.6  339.552   -0.072    1.7  0.16  10.3    0.0  0.00   0.0
4U 1323-62            201.640  -62.158 3.3  307.020   +0.434    2.0  0.25   7.9    1.1  0.22   4.8
PSR B1509-58          228.563  -59.204 3.1  320.321   -1.242    1.1  0.14   8.3    0.8  0.12   6.4
H 1538-522            235.521  -52.443 3.3  327.348   +2.146    1.0  0.13   7.7    0.0  0.00   0.0
IGR J16393-4643       249.744  -46.742 3.5  337.960   +0.064    1.1  0.14   7.3    0.0  0.00   0.0
IGR J16320-4751       248.038  -47.886 4.1  336.335   +0.146    0.9  0.14   6.1    0.0  0.00   0.0
Cir X-1               230.100  -57.148 3.6  322.097   +0.074    0.9  0.13   7.1    0.0  0.00   0.0
H 1705-440            257.323  -44.184 4.3  343.296   -2.446    1.4  0.23   5.9    0.0  0.00   0.0
IGR J15479-4529       237.090  -45.536 4.4  332.419   +6.965    0.9  0.16   5.7    0.0  0.00   0.0
PSR J1649-4349        252.375  -43.898 4.3  341.320   +0.525    1.1  0.19   5.8    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV



Note: Sources labelled were detected in the 3-10 keV image > 5σ and a re listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source posit ion is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5145462E+02  -4.5610786E+01   5.3132802E-02   3.9848294E+02
H 1624-490             2.4702167E+02  -4.9194805E+01   6.0365698E-03   1.1914236E+02
H 1705-440             2.5724200E+02  -4.4107445E+01   3.1952348E-02   3.6338196E+01
Cir X-1                2.3016763E+02  -5.7163368E+01   8.5863937E-04   1.9510946E+01
