INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1848: Observation start 2017-08-07T14:50 = MJD 57972.619
Total Observation GTI = 128136 seconds

ISGRI

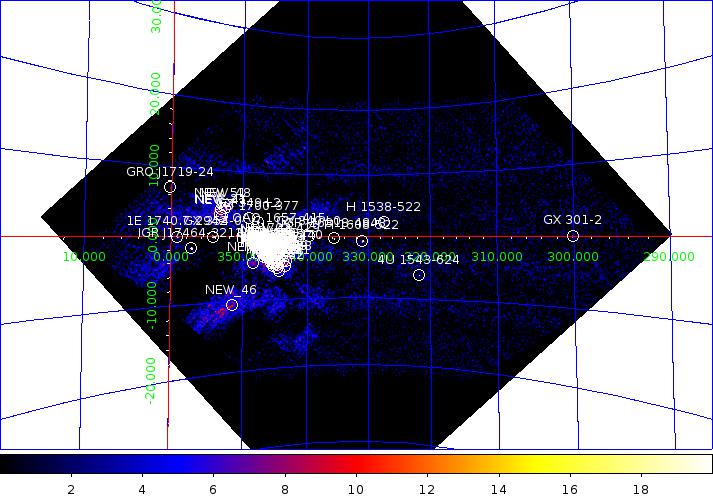

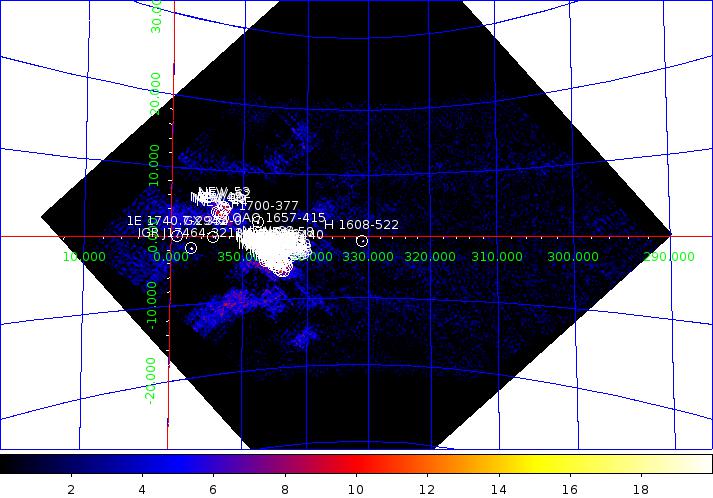

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.986  -37.843 0.3  347.755   +2.175   55.3  0.17 322.6   18.2  0.14 132.5
OAO 1657-415          255.207  -41.657 0.4  344.370   +0.317   16.8  0.15 110.5    4.9  0.12  40.1
H 1608-522            243.191  -52.423 0.5  330.931   -0.856   10.2  0.14  71.6    5.0  0.12  40.7
IGR J17464-3213       266.577  -32.223 0.5  357.269   -1.836   24.7  0.35  71.1   13.3  0.26  51.9
GX 354-0              262.985  -33.840 0.6  354.296   -0.150   17.1  0.25  68.6    5.6  0.19  29.4
GX 301-2              186.639  -62.770 0.9  300.090   -0.036   19.9  0.59  33.9    0.0  0.00   0.0
GX 340+0              251.440  -45.611 0.9  339.584   -0.075    4.7  0.14  34.5    0.0  0.00   0.0
H 1702-429            256.570  -43.041 1.2  343.885   -1.325    3.5  0.14  25.2    1.1  0.12   9.5
1E 1740.7-2942        266.005  -29.749 1.2  359.125   -0.127   10.6  0.43  24.6    7.7  0.32  23.8
IGR J16318-4848       247.949  -48.829 1.3  335.606   -0.455    3.2  0.14  23.6    0.0  0.00   0.0
H 1705-440            257.211  -44.163 2.1  343.265   -2.369    1.9  0.15  12.9    1.3  0.00  11.1
4U 1543-624           236.960  -62.550 1.8  321.762   -6.317    2.9  0.18  15.6    0.0  0.00   0.0
H 1538-522            235.495  -52.395 2.4  327.364   +2.194    1.6  0.14  11.4    0.0  0.00   0.0
GX 349+2              256.447  -36.420 2.0  349.111   +2.743    2.5  0.18  14.1    0.0  0.00   0.0
GRO J1719-24          259.900  -25.017 2.1    0.141   +6.994   16.3  1.24  13.1    0.0  0.00   0.0
Circinus Galaxy       213.336  -65.310 2.8  311.353   -3.786    1.8  0.20   9.3    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV



Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
GX 340+0               2.5145113E+02  -4.5609314E+01   3.7526160E-02   4.4198618E+02
H 1705-440             2.5722681E+02  -4.4101002E+01   3.0719897E-02   3.9525418E+02
GX 349+2               2.5644333E+02  -3.6418537E+01   5.0183740E-02   3.7452991E+02
4U 1700-377            2.5599261E+02  -3.7838436E+01   1.8870233E-02   2.2396565E+02
H 1624-490             2.4702164E+02  -4.9194263E+01   5.4089865E-03   9.5302917E+01
OAO 1657-415           2.5519940E+02  -4.1647842E+01   3.6214909E-03   7.0465691E+01
4U 1708-40             2.5810318E+02  -4.0834827E+01   3.2470762E-03   6.4623375E+01
H 1702-429             2.5656665E+02  -4.3035843E+01   3.7152059E-03   6.3815449E+01
XTE J1701-407          2.5540942E+02  -4.0860573E+01   7.6942099E-04   1.2929978E+01
SAX J1712.6-3739       2.5816922E+02  -3.7645199E+01   1.0404165E-03   1.1718017E+01
Cir X-1                2.3016782E+02  -5.7163311E+01   4.3654814E-03   9.8543213E+01
PSR B1509-58           2.2847937E+02  -5.9130909E+01   2.5298860E-04   7.1009884E+00
