INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1849: Observation start 2017-08-10T16:04 = MJD 57975.67
Total Observation GTI = 127727 seconds

ISGRI

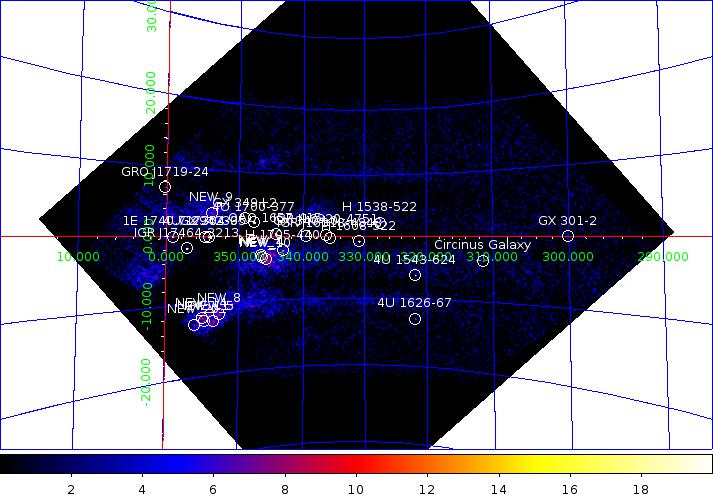

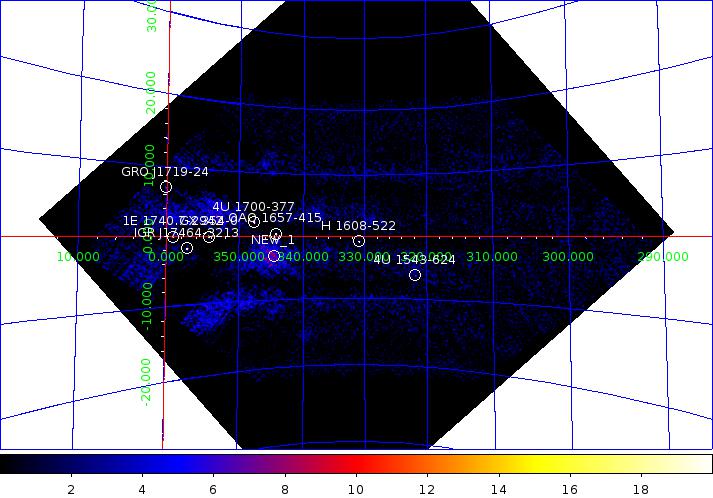

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.983  -37.844 0.3  347.753   +2.176   38.2  0.18 214.0   12.3  0.15  84.2
OAO 1657-415          255.203  -41.658 0.3  344.367   +0.318   24.0  0.15 155.8    6.7  0.13  53.4
H 1608-522            243.182  -52.428 0.5  330.925   -0.855   11.2  0.14  82.5    5.3  0.12  45.0
GX 354-0              262.991  -33.835 0.5  354.303   -0.151   18.6  0.24  78.8    6.5  0.18  35.3
IGR J17464-3213       266.578  -32.228 0.6  357.265   -1.840   22.0  0.34  64.3   12.7  0.26  48.2
1E 1740.7-2942        265.997  -29.727 1.1  359.140   -0.110   12.5  0.45  27.8    7.8  0.34  22.7
4U 1543-624           236.961  -62.576 1.4  321.746   -6.338    3.3  0.16  20.6    1.5  0.14  11.1
H 1538-522            235.541  -52.390 1.8  327.390   +2.181    2.0  0.13  15.3    0.0  0.00   0.0
GX 340+0              251.439  -45.609 1.6  339.586   -0.073    2.5  0.14  17.7    0.0  0.00   0.0
IGR J16320-4751       247.976  -47.876 1.7  336.314   +0.183    2.3  0.14  16.1    0.0  0.00   0.0
H 1705-440            257.177  -44.144 2.5  343.266   -2.338    1.6  0.15  10.6    0.0  0.00   0.0
Circinus Galaxy       213.362  -65.326 2.2  311.358   -3.804    2.2  0.18  12.1    0.0  0.00   0.0
GRO J1719-24          259.882  -24.983 1.8    0.160   +7.027   15.3  0.97  15.8    9.3  0.73  12.8
GX 301-2              186.647  -62.766 2.1  300.093   -0.031    7.6  0.58  13.1    0.0  0.00   0.0
GX 349+2              256.446  -36.417 2.0  349.113   +2.746    2.5  0.19  13.3    0.0  0.00   0.0
IGR J16318-4848       247.949  -48.790 2.0  335.634   -0.429    2.0  0.14  13.9    0.0  0.00   0.0
4U 1626-67            248.044  -67.458 2.4  321.784  -13.083    4.3  0.39  11.1    0.0  0.00   0.0
4U 1730-335           263.353  -33.405 2.3  354.828   -0.170    2.7  0.23  11.5    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV



Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cir X-1                2.3016812E+02  -5.7163136E+01   5.9118751E-03   1.2933759E+02
PSR B1509-58           2.2848090E+02  -5.9132347E+01   3.5472578E-04   9.7296228E+00
GX 340+0               2.5144850E+02  -4.5608673E+01   5.7514526E-02   5.3884015E+02
GX 349+2               2.5644153E+02  -3.6420216E+01   7.1773849E-02   4.9605759E+02
H 1705-440             2.5722464E+02  -4.4101765E+01   3.4602497E-02   3.2196280E+02
4U 1700-377            2.5599136E+02  -3.7837425E+01   8.5273217E-03   1.0857339E+02
H 1624-490             2.4701079E+02  -4.9195606E+01   5.5196136E-03   1.0004450E+02
OAO 1657-415           2.5520279E+02  -4.1654499E+01   5.2825874E-03   7.5630287E+01
H 1702-429             2.5656137E+02  -4.3034637E+01   5.4574758E-03   6.9580551E+01
4U 1708-40             2.5810168E+02  -4.0841469E+01   3.2231624E-03   5.6216656E+01
SAX J1712.6-3739       2.5816232E+02  -3.7644283E+01   9.4583287E-04   1.3013272E+01
