INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1850: Observation start 1999-12-31T23:58 = MJD 51544
Total Observation GTI = 102931 seconds

ISGRI

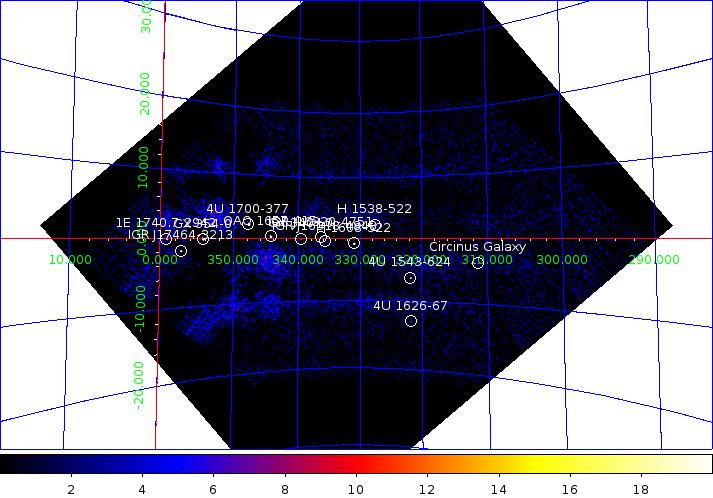

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.988  -37.843 0.3  347.756   +2.174   43.2  0.23 189.1   12.7  0.19  68.5
OAO 1657-415          255.203  -41.658 0.4  344.368   +0.318   20.8  0.19 109.5    5.8  0.16  36.5
H 1608-522            243.179  -52.426 0.7  330.924   -0.853    7.1  0.13  54.6    3.3  0.11  28.7
IGR J17464-3213       266.574  -32.227 1.0  357.265   -1.836   19.3  0.60  32.4    9.7  0.45  21.5
GX 354-0              262.992  -33.832 0.9  354.306   -0.151   13.4  0.39  34.3    3.1  0.30  10.1
4U 1543-624           236.971  -62.572 1.4  321.752   -6.337    3.4  0.16  21.4    1.5  0.14  10.7
1E 1740.7-2942        265.972  -29.729 1.6  359.127   -0.092   13.7  0.78  17.6    8.6  0.60  14.3
H 1538-522            235.564  -52.394 1.8  327.398   +2.170    2.1  0.14  15.3    0.0  0.00   0.0
GX 340+0              251.448  -45.614 1.7  339.586   -0.080    2.6  0.15  16.7    0.0  0.00   0.0
Circinus Galaxy       213.302  -65.307 2.4  311.341   -3.779    1.9  0.18  10.9    0.0  0.00   0.0
4U 1626-67            248.070  -67.490 2.4  321.766  -13.111    4.3  0.38  11.2    0.0  0.00   0.0
IGR J16320-4751       248.028  -47.868 2.6  336.343   +0.163    1.5  0.14  10.2    0.0  0.00   0.0
IGR J16318-4848       247.977  -48.831 2.4  335.617   -0.470    1.6  0.15  11.1    0.0  0.00   0.0
H 1705-440            257.214  -44.113 3.5  343.306   -2.341    1.3  0.18   7.3    0.0  0.00   0.0
GX 349+2              256.471  -36.409 3.1  349.132   +2.734    2.1  0.26   8.3    0.0  0.00   0.0
PSR B1509-58          228.590  -59.164 2.8  320.353   -1.215    1.2  0.13   9.4    0.0  0.00   0.0
4U 1323-62            201.623  -62.156 3.1  307.013   +0.437    1.8  0.21   8.3    0.0  0.00   0.0
GRO J1719-24          259.920  -25.048 2.7    0.125   +6.962   23.6  2.43   9.7    0.0  0.00   0.0
GX 301-2              186.814  -62.782 3.4  300.171   -0.040    4.0  0.52   7.7    0.0  0.00   0.0

JEM-X Detected Sources 3-10 keV



Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cir X-1                2.3016670E+02  -5.7161465E+01   3.3449143E-04   9.1290998E+00
PSR B1509-58           2.2849745E+02  -5.9148220E+01   2.3305588E-04   7.0729046E+00
4U 1543-624            2.3696970E+02  -6.2563385E+01   2.3919747E-03   6.1706023E+00
GX 340+0               2.5144867E+02  -4.5608345E+01   5.4855246E-02   5.2486658E+02
H 1705-440             2.5722659E+02  -4.4103134E+01   2.8699787E-02   2.3179663E+02
GX 349+2               2.5644162E+02  -3.6417400E+01   7.2410814E-02   1.9236708E+02
H 1624-490             2.4701031E+02  -4.9194859E+01   5.5030654E-03   9.3738274E+01
4U 1700-377            2.5599142E+02  -3.7838692E+01   1.6514741E-02   7.9771690E+01
H 1702-429             2.5656332E+02  -4.3036175E+01   5.5363351E-03   5.6172836E+01
OAO 1657-415           2.5520175E+02  -4.1656452E+01   4.4749822E-03   4.1488194E+01
4U 1708-40             2.5810355E+02  -4.0838375E+01   4.0696277E-03   3.9035366E+01
XTE J1701-407          2.5545633E+02  -4.0868740E+01   1.0139942E-03   9.2282495E+00
