INTEGRAL Galactic Plane Scanning

******************* Very Preliminary results ******************

Revolution 1979b: Observation start 1999-12-31T23:58 = MJD 51544
Total Observation GTI = 51906 seconds

ISGRI

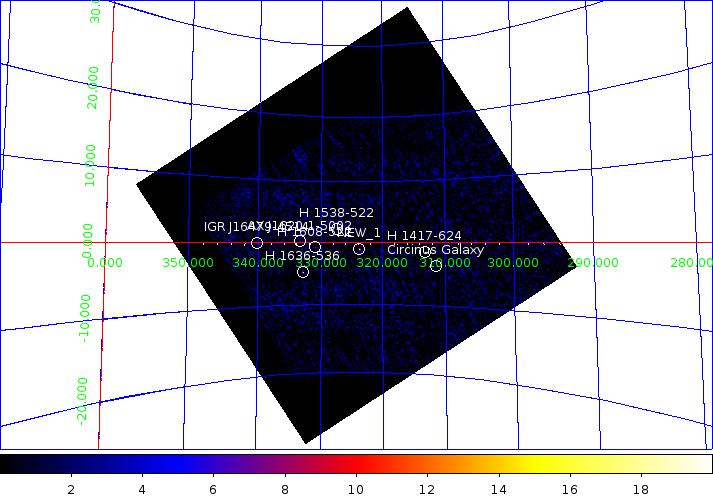

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.

ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
H 1417-624            215.277  -62.701 1.2  313.009   -1.597    4.2  0.17  24.3    1.0  0.16   5.9
H 1636-536            250.250  -53.761 1.4  332.915   -4.833    5.3  0.26  20.3    1.9  0.23   8.2
H 1538-522            235.634  -52.386 1.7  327.437   +2.150    2.9  0.17  17.0    0.8  0.15   5.3
IGR J16479-4514       251.992  -45.209 2.2  340.142   -0.110    6.5  0.53  12.2    0.0  0.00   0.0
H 1608-522            243.191  -52.426 2.2  330.929   -0.858    2.4  0.19  12.3    1.2  0.17   7.1
Circinus Galaxy       213.309  -65.316 2.5  311.340   -3.788    2.0  0.19  10.6    0.8  0.17   4.7
AX J1620.1-5002       245.071  -49.989 2.6  333.469   +0.078    2.4  0.24  10.3    1.3  0.21   6.0
PSR B1509-58          228.361  -59.197 2.8  320.236   -1.182    1.3  0.14   9.2    0.8  0.13   6.4
GX 301-2              186.636  -62.748 3.1  300.087   -0.014    4.0  0.49   8.2    0.0  0.00   0.0
4U 1626-67            248.184  -67.426 3.0  321.845  -13.101    3.7  0.42   8.7    0.0  0.00   0.0
OAO 1657-415          255.219  -41.643 3.6  344.386   +0.318   13.3  1.90   7.0    0.0  0.00   0.0
GX 340+0              251.512  -45.627 3.7  339.604   -0.124    3.1  0.45   6.8    0.0  0.00   0.0
4U 1323-62            201.664  -62.165 3.6  307.031   +0.427    1.6  0.23   7.1    0.0  0.00   0.0

JEM-X

Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator in 3-10 keV energy band.
    Source Name             RA             dec            A(cps)          sigma
====================   =============   =============   =============   =============
Cir X-1                2.3016859E+02  -5.7165039E+01   4.1195251E-02   4.3829199E+02
H 1417-624             2.1529065E+02  -6.2704681E+01   1.6725494E-03   3.9984222E+01
